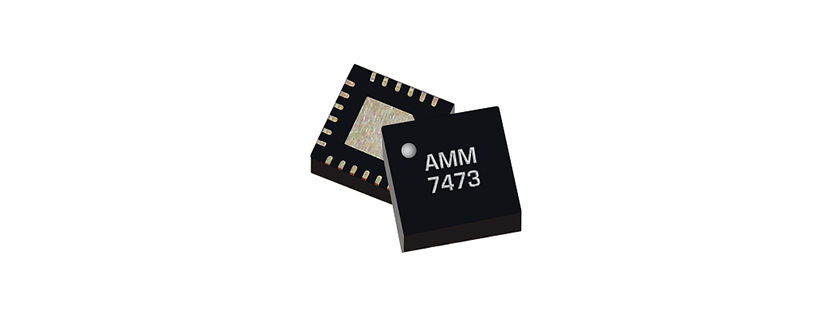

AMM-7473PSM RF Amplifier by Marki Microwave
The AMM-7473PSM from Marki Microwave is a highly linear RF amplifier that operates from 0.4 to 27 GHz. It delivers a saturated output power of 25 dBm with a small signal gain of 17 dB. This amplifier was developed to drive H/S Series Diode mixers from Marki Microwave. However, can also be used as a general purpose broadband linear amplifier. This amplifier integrates an internal choke inductor which eliminates the need for an external bias tee. It requires a DC supply of 7 V and consumes 150 mA of current. The amplifier is available in a surface-mount QFN package that measures 4 x 4 mm and is ideal for mobile test and measurement equipment, radar and satellite communications.
Product Details
- Part Number: AMM-7473PSM
- Manufacturer: Marki Microwave
- Description: High Linearity SMT Driver Amplifier from 0.4 to 27 GHz
General Parameters
- Type: Low Noise Amplifier
- Configuration: IC/MMIC/SMT
- Industry Application: Radar, SATCOM, Test & Measurement
- Frequency: 400 MHz to 27 GHz
- Small Signal Gain: 12 to 17 dB
- Noise Figure: 1.8 to 3.6 dB
- Grade: Commercial
- IP3: Input: 18 dBm, Output: 34 dBm
- Saturated Power: 23 to 25 dBm
- Saturated Power: 0.2 to 0.31 W
- Input Power: 11 dBm
- Impedance: 50 Ohms
- Reverse Isolation: 40 dB
- Input Return Loss: 9 dB
- Output Return Loss: 8 dB
- Supply Voltage: 7 V
- Quiscent Current: 150 mA
- Package Type: Surface Mount
- Package: QFN
- Dimensions: 4×4 mm
- Weight: 0.05 g
- Operating Temperature: -55 to 85 Degree C
- Storage Temperature: -65 to 150 Degree C
- RoHS: Yes
