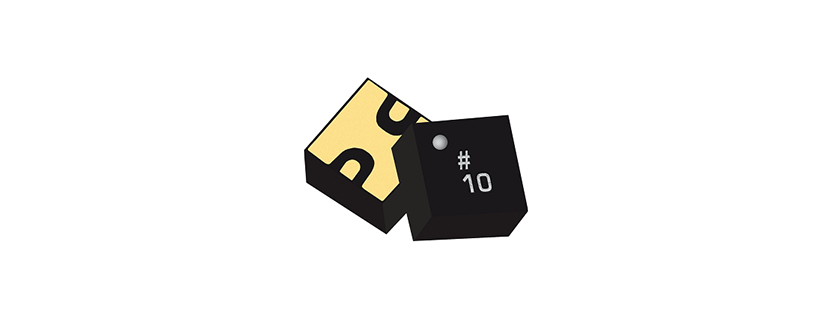

MEQ6-26CSP1 Gain Equalizer by Marki Microwave
The MEQ6-26CSP1 from Marki Microwave is an Equalizer MMIC that operates from DC to 26 GHz. It can handle an input power of 2 W and has an insertion loss of 0.3 dB (@26 GHz). This equalizer provides a positive slope and is ideal for compensating low-pass filtering effects in RF/microwave and high-speed digital systems. It is available in a chip-scale package that measures 1.5 x 1.5 mm and is suitable for use in RF transceivers, high-speed data, telecom, cable loss compensation, and amplifier compensation.
Product Details
- Part Number: MEQ6-26CSP1
- Manufacturer: Marki Microwave
- Description: GaAs MMIC Equalizer from DC to 26 GHz
General Parameters
- Type: Positive Gain Slope
- Application: RF Transceivers, High-Speed Data, Telecom, Cable Loss Compensation, Amplifier Compensation
- Frequency: DC to 26 GHz
- Gain Equalization: 6 dB
- Insertion Loss: 0.3 to 6 dB
- Power: 2 W
- VSWR: 1.5:1
- return_loss: 23 dB
- Package Type: Surface Mount
- Package: CSP1
- Dimensions: 1.5 x 1.5 mm
- Impedance: 50 Ohms
- RoHs: Yes
- Operating Temperature: -55 to 100 Degree C
- Storage Temperature: -65 to 125 Degree C
- Grade: Commercial, Military
