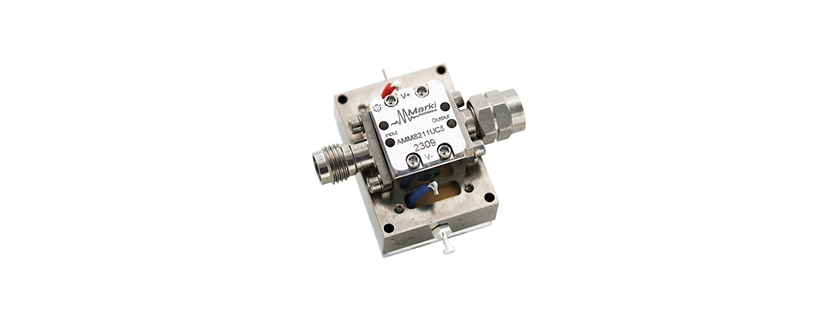

AMM-8211 RF Amplifier by Marki Microwave
The AMM-8211 from Marki Microwave is a GaAs Driver Amplifier that operates from 22 to 57 GHz. It delivers a saturated output power of +21 dBm with a small signal gain of up to 13 dB and provides a reverse isolation of 48 dB. This amplifier requires a DC supply of 5 V and consumes 175 mA of current. This amplifier is suitable for driving Marki Microwave’s H or L diode mixers (from 22 to 57 GHz) and S diode mixers (from 25-50 GHz). It is available in a UC5 connectorized module that measures 40.72 x 28.20 x 21.51 mm with 1.85 mm male/female connectors and built-in DC-blocking capacitors on the input and output. The AMM-8211 is ideal for mobile test and measurement equipment, radar and satellite communications, 5G transceiver applications and as a driver amplifier for L, H, S – diode mixers.
Product Details
- Part Number: AMM-8211
- Manufacturer: Marki Microwave
- Description: GaAs Driver Amplifier from 22 to 57 GHz
General Parameters
- Type: Driver Amplifier
- Configuration: Module with Connector
- Display Application: 5G Transceivers, Driver amplifier L, H, S – diode mixers, Mobile test and measurement equipment
- Standards Supported: 5G
- Industry Application: Radar, SATCOM, Test & Measurement
- Frequency: 22 to 57 GHz
- Small Signal Gain: 10 to 13 dB
- Noise Figure: 6.3 dB
- P1dB: 19 dBm
- Grade: Commercial, Military, Space
- IP3: 15 dB (IIP3) & 27 dB (OIP3)
- Saturated Power: 18 to 21 dBm
- Saturated Power: 0.0631 to 0.125 W
- Input Power: 11 to 20 dBm
- Input Power: 0.0126 to 0.1 W
- Power Dissipation: 1 W
- Impedance: 50 Ohms
- Reverse Isolation: 48 dB
- Input Return Loss: 14 dB
- Output Return Loss: 16 dB
- Supply Voltage: 5 V
- Current Consumption: 155 to 230 mA
- Technology: GaAs MMIC
- Package: UC5 Package
- Dimensions: 1.6 x 1.055 x 0.847 in.
- Input Connector: 1.85 mm, 1.85 mm – Female
- Output Connector: 1.85 mm, 1.85 mm – Male
- Weight: 23 gm
- Operating Temperature: -40 to 85 Degree C
- Storage Temperature: -65 to 150 Degree C
- RoHS: Yes
