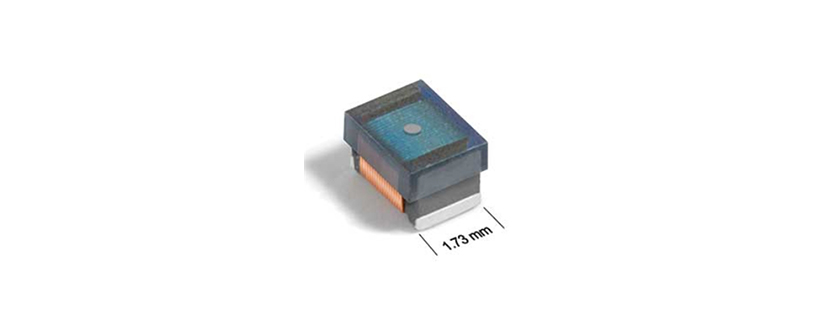

The 0805RB Series from Coilcraft are Wirewound Ferrite Beads that provide excellent isolation between AC noise from DC bias or DC power injection lines in baseband RF amplifier circuits. They provide superior performance compared to traditional thick-film ferrite beads, including optimized impedance over a wide frequency range. These ferrite beads also offer high Self Resonant Frequency and low DCR which makes them an excellent choice for high-current applications. They are available in packages that measure 2.29 x 1.73 x 1.52 mm.

Product Details

  • Part Number: 0805RB Series
  • Manufacturer: Coilcraft
  • Description: Wirewound Ferrite Beads for AC/DC Isolation in RF Amplifier Circuits

General Parameters

  • Inductance: 0.19 to 2.87 uH
  • DC Resistance: 0.13 to 1.32 Ohms
  • DC Current: 0.195 to 1.2 A
  • Self Resonant Frequency: 100 to 1000 MHz
  • Mounting: Surface Mount
  • Thickness: 0.23 mm
  • RoHS: Yes
  • Type: Wire Wound Inductor
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +100°C
  • Weight: 15 to 18 mg
