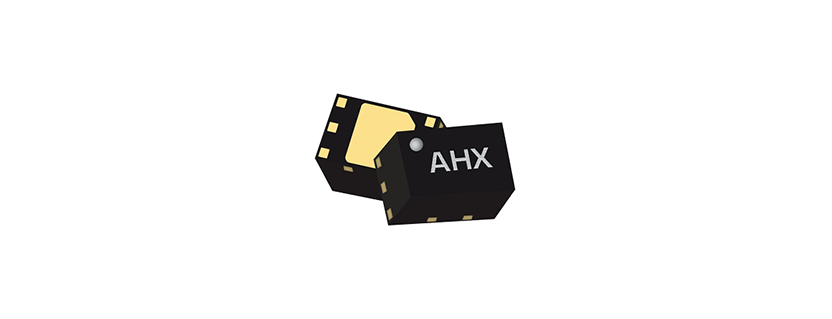

ADM-8622PSM RF Amplifier by Marki Microwave

The ADM-8622PSM from Marki Microwave is a Low Noise Amplifier that operates from DC to 10 GHz. It provides a small signal gain of 15.5 dB with a noise figure of 2 dB and has a saturated output power of +15 dBm. This LNA provides a reverse isolation of 19 dB and is suitable for use in RF front-ends that require low noise, high gain, and excellent signal fidelity. It requires a DC supply of 3.3 V and consumes 60 mA of current. The amplifier is available in a surface-mount DFN package that measures 1.3 x 2.0 mm and is ideal for mobile test and measurement equipment, radar, 5G transceivers, and satellite communications applications.

Product Details

• Part Number: ADM-8622PSM
• Manufacturer: Marki Microwave
• Description: Surface-Mount Low Noise Amplifier from DC to 10 GHz


General Parameters

• Type: Gain Block, Low Noise Amplifier
• Configuration: IC/MMIC/SMT
• Application: Mobile, Radar
• Standards Supported: 5G
• Industry Application: Cellular, SATCOM, Test & Measurement
• Frequency: DC to 10 GHz
• Small Signal Gain: 15.5 dB
• Noise Figure: 2 dB
• P1dB: 13.5 dBm
• P1dB: 0.0224 W
• Grade: Commercial
• IP3: 26 dBm
• Saturated Power: 15 dBm
• Saturated Power: 0.0316 W
• Impedance: 50 Ohms
• Reverse Isolation: 19 dB
• Input Return Loss: 16 dB
• Output Return Loss: 24 dB
• Supply Voltage: 3.3 V
• Current Consumption: 40 mA
• Package Type: Surface Mount
• Package: DFN
• Dimensions: 1.3 x 2 mm
• Weight: 7 mg
• Operating Temperature: -40 to +85 Degree C
• Storage Temperature: -65 to +125 Degree C
• RoHS: Yes
