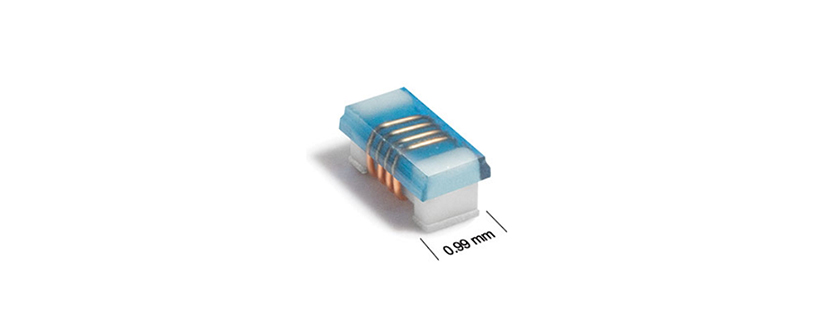

0603DC Series RF Inductor by Coilcraft
The 0603DC Series from Coilcraft are Ceramic Wirewound Chip Inductors with inductance values from 2.7 to 470 nH. These inductors achieve the industry’s highest Q factors in a 0603 size for super low loss in high-frequency circuits. Q factor can be as high as 177 at 2.4 GHz. They have an extremely high self-resonance of up to 11.4 GHz and DCR as low as 29 mΩ. These inductors are AEC-Q200 Grade 1 Certified and can operate at a temperature from–40 to +125 °C.
Product Details
- Part Number: 0603DC Series
- Manufacturer: Coilcraft
- Description: Ceramic Wirewound Chip Inductors from 2.7 to 470 nH
General Parameters
- Inductance: 0.0016 to 0.47 uH
- DC Resistance: 0.026 to 5.40 Ohms
- DC Current: 70 to 3670 mA
- Self Resonant Frequency: 0.6 to 14.9 GHz
- Mounting: Surface Mount
- Thickness: 0.99 mm
- RoHS: Yes
- Type: Ceramic Inductor, Chip Inductor, Wire Wound Inductor
- Operating Temperature: -40 to 125 Degree C
- Quality Factor: 44 to 144
- Storage Temperature: -40 to 140 Degree C
- Weight: 3 – 4 mg
