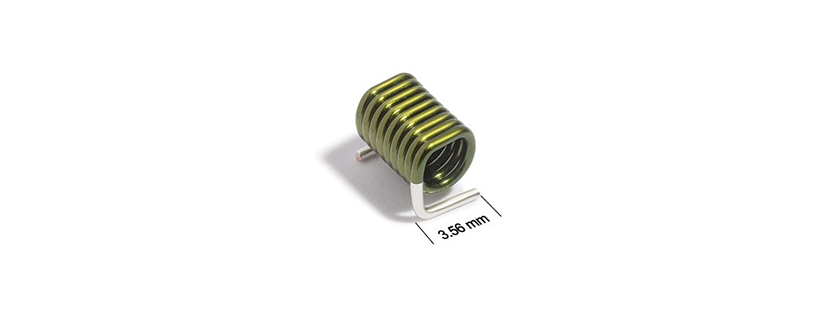

2929SQ-501 RF Inductor by Coilcraft

The 2929SQ-501 from Coilcraft is a RF Inductor with Inductance 0.5 uH, DC Resistance 16.5 mOhms, DC Current 4.3 A, Self Resonant Frequency 500 MHz, Operating Temperature -40 to 125 Degree C. More details for 2929SQ-501 can be seen below.

Product Details

• Part Number: 2929SQ-501
• Manufacturer: Coilcraft
• Description: 500 MHz (SRF), Square Air Core Inductor with 500 nH


General Parameters

• Inductance: 0.5 uH
• DC Resistance: 16.5 mOhms
• DC Current: 4.3 A
• Dimension: 14 x 7.49 x 7.24 mm(L x W x T)
• Self Resonant Frequency: 500 MHz
• Mounting: Surface Mount
• Length: 14.00 mm
• Industry Applications: Space, Military
• Width: 7.49 mm
• Thickness: 7.24 mm
• RoHS: Yes
• Operating Temperature: -40 to 125 Degree C
• Quality Factor: 180
• Storage Temperature: -40 to 145 Degree C
• Weight: 1160 mg
• Note: Test Frequency: 50 MHz
