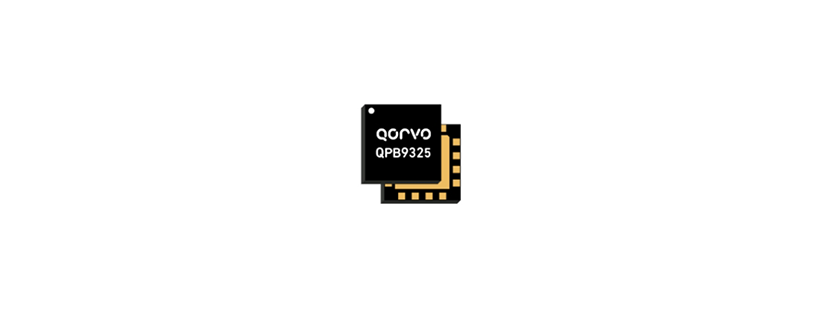

QPB9325 Front End Module by Qorvo
The QPB9325 from Qorvo is a Front-End Module that operates from 3.3 to 4.2 GHz. It integrates a high-power switch, two low-noise amplifier (LNA) stages, PIN-diode driver circuits, and a DC converter. This module uses Qorvo’s high-performance E-pHEMT process, and the switch allows for power levels up to 360 W peak power to be routed to an external load termination. In Tx mode, this FEM has an insertion loss of less than 1 dB while in Rx mode, it provides a gain of 34.1 dB with a noise figure of less than 1.65 dB and has a reverse isolation of 58 dB. It requires a DC supply of 5 V, consumes 240 mA of current in Rx mode, and less than 150 mA of current in Tx mode.
The QPB9325 is available in a compact surface-mount leadless package that measures 8 x 8 mm and is ideal for TDD macro or picocell base stations and wireless infrastructure applications configured for TDD-based architectures.
Product Details
- Part Number: QPB9325
- Manufacturer: Qorvo
- Description: Front-End Module with Integrated Switch and LNA from 3.3 to 4.2 GHz
General Parameters
- Type: Transmit / Receive Module
- Configuration: Low Noise Amplifier, Switch
- Switch Configuration: SPDT
- Application Industry: Wireless Infrastructure, TDD-based communication systems
- Application: Cellular, Base Station
- Wireless Standard: LTE
- Bands: Single Band
- Frequency: 3.3 to 4.2 GHz
- Frequency Range: 3.6 to 3.8 GHz
- Current: 140 to 240 mA
- Tx Power: 46.6 dBm (P0.1dB)
- Tx Current: 140 mA
- Tx IIP3: -10 to -2.2 dBm (Rx)
- Tx P1dB: -15 dBm (Rx)
- Voltage: 4.75 to 5.25 V
- Rx Gain: 31 to 34.1 dB
- Rx Noise Figure: 1.2 to 1.65 dB
- Rx Current: 240 mA
- Insertion Loss: 0.5 to 1 dB
- Isolation: 58 dB
- Package Type: Surface Mount
- Package: SMT
- Dimensions: 8 x 8 mm
- Grade: Commercial
- RoHS: Yes
