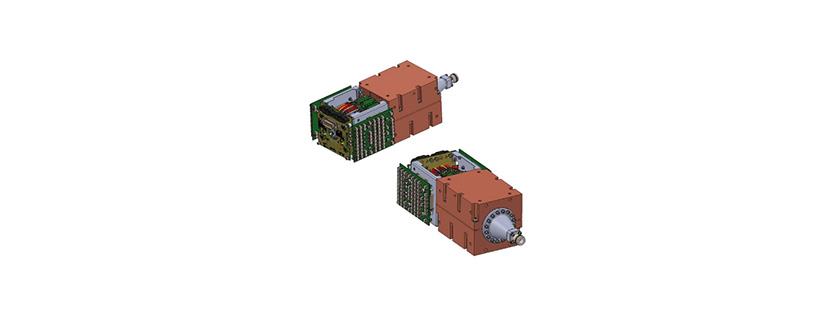

QPB0220N RF Amplifier by Qorvo

The QPB0220N from Qorvo is a RF Amplifier with Frequency 2 to 18 GHz, Power Gain 12.8 dB, Small Signal Gain 17 dB, Saturated Power 53.4 dBm, Saturated Power 220 W. Tags: Power Amplifier. More details for QPB0220N can be seen below.

Product Details

• Part Number: QPB0220N
• Manufacturer: Qorvo
• Description: 200 W GaN Solid State Power Amplifier from 2 to 18 GHz


General Parameters

• Type: Power Amplifier
• Configuration: Module with Connector
• Display Application: TWTA Replacement
• Frequency: 2 to 18 GHz
• Power Gain: 12.8 dB
• Small Signal Gain: 17 dB
• Grade: Commercial
• Saturated Power: 53.4 dBm
• Saturated Power: 220 W
• Input Power: 49 dBm
• Input Power: 79.4 to 79.7 W
• PAE: 19.5 to 22.6 %
• Impedance: 50 Ohms
• Pulsed/CW: CW/Pulsed
• Sub-Category: SSPA, TWT Replacement
• Input Return Loss: 16 dB
• Harmonics: -26 to -14 dBc
• Switching Time: 132 to 142 ns
• Supply Voltage: 18 V
• Current Consumption: 58 A
• Quiscent Current: 54 A
• Dimensions: 11.33 x 4.8 x 3.4 in.
• Input Connector: SMA – Female
• Output Connector: N Type – Female
• Weight: 7.94 Kg
• Operating Temperature: -40 to 85 Degree C
• RoHS: Yes

Courtesy of everything RF
