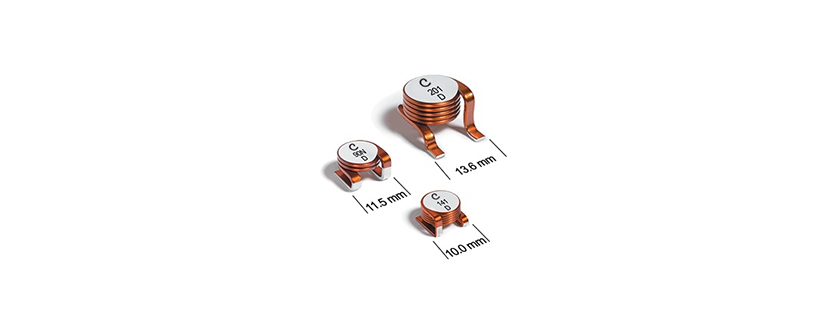

1212VS-66NME_ RF Inductor by Coilcraft

The 1212VS-66NME_ from Coilcraft is a RF Inductor with Inductance 0.066 uH, DC Resistance 0.9 to 0.99 Ohms, DC Current 35 to 48 A, Self Resonant Frequency 480 MHz, Operating Temperature -40 to 125 Degree C. Tags: Air Core Inductor. More details for 1212VS-66NME_ can be seen below.

Product Details

• Part Number: 1212VS-66NME_
• Manufacturer: Coilcraft
• Description: 66 nH Air Core Inductor for Space & Military Applications


General Parameters

• Inductance: 0.066 uH
• DC Resistance: 0.9 to 0.99 Ohms
• Bulk Package: Tape & Reel
• DC Current: 35 to 48 A
• Dimension: 11.5 mm x 10.34 mm x 8.8 mm(L x W x H)
• Self Resonant Frequency: 480 MHz
• Mounting: Surface Mount
• Length: 11.5 mm
• Industry Applications: Military, Space
• Width: 10.34 mm
• Thickness: 8.8 mm
• RoHS: Yes
• Type: Air Core Inductor
• Operating Temperature: -40 to 125 Degree C
• Quality Factor: 200
• Storage Temperature: -40 to 155 Degree C
• Tolerance: ±20%
• Weight: 3.2 g
• Note: Test Frequency: 50 MHz
