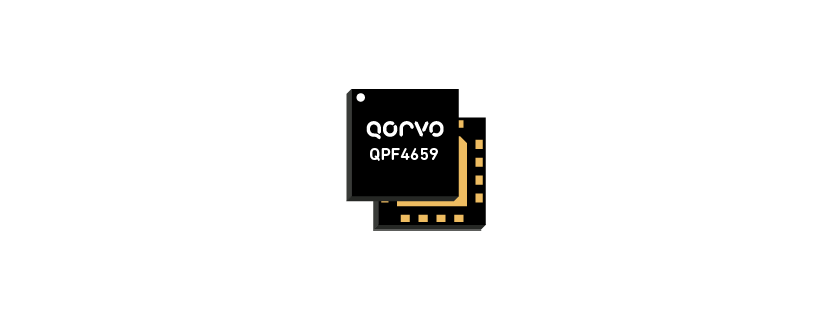

QPF4659 6 GHz Wi-Fi 7 High Power Front End Module

Key Features

• POUT = +13 dBm MCS13 EHT320 -47 dB Dynamic EVM
• POUT = +20 dBm MCS9 EHT320 -35 dB Dynamic EVM
• POUT = +21 dBm MCS7 EHT320 -30 dB Dynamic EVM
• POUT = +24 dBm MCS9 VHT40 -35 dB Dynamic EVM
• POUT = +27 dBm MCS0 HT20 Spectral Mask Compliance
• Optimized for +5 V Operation
• 32 dB Tx Gain
• 1.8 dB Noise Figure
• 16 dB Rx Gain & 7 dB Bypass Loss
• Integrated RF Coupler
• Integrated DC Logarithmic Power Detector

The Qorvo QPF4659 is an integrated front end module (FEM) designed for Wi-Fi 7 (802.11be) systems. The compact form factor and integrated matching minimizes layout area in the application.

Performance is focused on optimizing the PA for a 5V supply voltage that conserves power consumption while maintaining the highest linear output power and leading-edge throughput. This is done across a wide bandwidth enabling operation in all channels from UNII5-8 (5.9 to 7.1 GHz) Integrated die level filtering for 2nd and 3rd harmonics as well as 2.4 GHz rejection for DBDC operation are included. A coupler with RF output as well as a broad range, constant slope voltage logarithmic power detector is provided for application feedback.

The QPF4659 integrates a 6 GHz power amplifier (PA), single pole two throw switch (SP2T) and bypassable low noise amplifier (LNA) into a single device.

Frequency Min(GHz)	5.925
Frequency Max(GHz)	7.125
Functionality	PA, Switch, LNA
Wi-Fi Standards	Wi-Fi 7
Vcc(V)	5
11ac Pout(dBm)	13
11ac EVM(dB)	-47
11ac Current(mA)	180
11n Pout(dBm)	18
11n EVM(dB)	-43
11n Current(mA)	220
Tx Gain(dB)	32
OP1dB(dBm)	31
Rx Gain(dB)	16
NF(dB)	1.8
Bypass Loss(dB)	7
Rx Current(mA)	20
Package Type	Laminate
Package(mm)	3.0 x 3.0

Courtesy of Qorvo
