C10-1200WG Waveguide Coupler by Marki Microwave

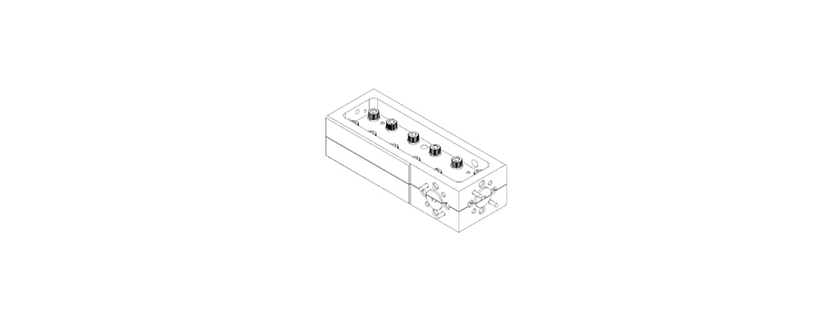

The C10-1200W from Marki Microwave is a Waveguide Coupler that operates from 60 to 90 GHz. This 10 dB coupler provides a directivity of more than 40 dB and has an insertion loss of 1.1 dB. It has a return loss of 35 dB and an amplitude flatness of 1 dB. This coupler is built with high precision and then gold-plated for high corrosion resistance. It is available in a module that measures 3.38 x 1.20 x 0.87 inches with WR-12 waveguide (UG-387/U) input and output interfaces. The coupler is ideal for mmWave and high-power applications.
Product Details
- Part Number: C10-1200WG
- Manufacturer: Marki Microwave
- Description: 10 dB, WR-12 Waveguide Coupler from 60 to 90 GHz
General Parameters
- Frequency: 60 to 90 GHz
- Coupling: 10 dB
- Directivity: 30 to 40 dB
- Insertion Loss: 1.1 dB
- Return Loss: 20 to 35 dB
- Dimension: 85.85 x 30.48 x 21.96 mm
- Finish: Gold Plated
- Flange: UG-387/U
- Application: mmWave
- Operation Temperature: -40 to 85 Degree C
