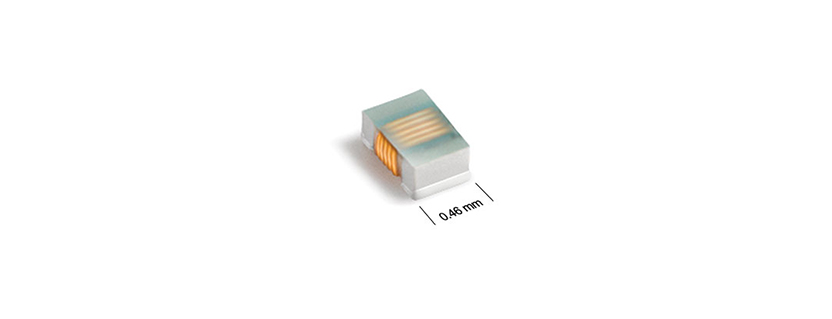

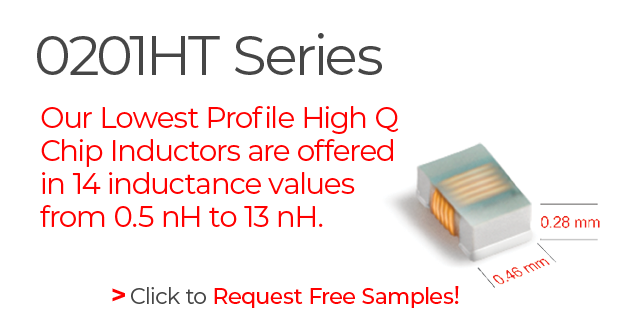

Coilcraft lowest profile high Q wirewound chip inductor.
0201HT (0603) – Low Profile Chip Inductor
The 0201HT is the industry’s lowest profile 0201-sized (metric 0603) chip inductor with a maximum height of just 0.28 mm. It has significantly higher Q and lower DCR than similarly sized thin-film types and is optimized for high-frequency impedance matching in applications such as cell phones, wearable devices, WiFi, Bluetooth, GPS and LTE/5G IoT networks.
- 0201 sized inductor with low-profile 0.28 mm maximum height
- Excellent Q compared to non-wirewound alternatives at this height
- Very high SRF – as high as 36 GHz
Core material Ceramic
Environmental RoHS compliant without exemption, halogen free
Terminations RoHS compliant matte tin over nickel over silver-glass frit.
Weight 0.14 – 0.24 mg Ambient temperature –40°C to +125°C with Irms current
Maximum part temperature +140°C (ambient + temp rise).
Storage temperature Component: –40°C to +140°C. Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL) +25 to +125 ppm/°C
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)
Packaging 2000 or 10,000 per 7″ reel; Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing
PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash.
