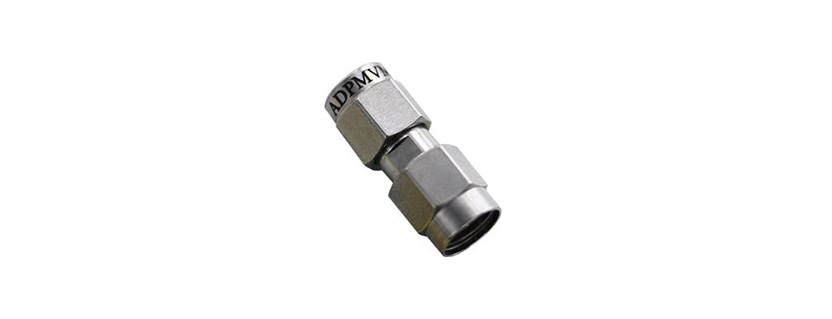

ADPMVMK Between Series RF Adapter by Marki Microwave

The ADPMVMK from Marki Microwave is a 2.4 mm Male to 2.92 mm Male Coaxial Adapter that operates from DC to 40 GHz. It has an insertion loss of 0.19 dB, a return loss of 37 dB, and consumes less than 7.5 A of current. This RoHS-compliant adapter measures (Dia) 8 x (L) 21.3 mm and has a passivated stainless-steel body with gold-plated contacts. It has an EAR99 export classification.

Product Details

• Part Number: ADPMVMK
• Manufacturer: Marki Microwave
• Description: 2.4 mm Male to 2.92 mm Male Adapter from DC to 40 GHz


General Parameters

• Adapter Interface 1: 2.4 mm
• Adapter – Gender 1: Male
• Adapter Interface 2: 2.92 mm
• Adapter – Gender 2: Male
• Geometry: Straight
• Body_Material: Stainless Steel
• Configuration: Standard
• Center Contact Material: Beryllium Copper
• Return Loss: 37 dB
• Contact Plating: Gold
• Insulation Material: PPO
• VSWR: 1.03:1
• Connector Length: 0.84 Inches
• Frequency: DC to 40 GHz
• Insertion Loss: 0.19 dB
• Temperature: -55 to 105 Degree C
• RoHS: Yes
• Note: Current: 7.5 A
