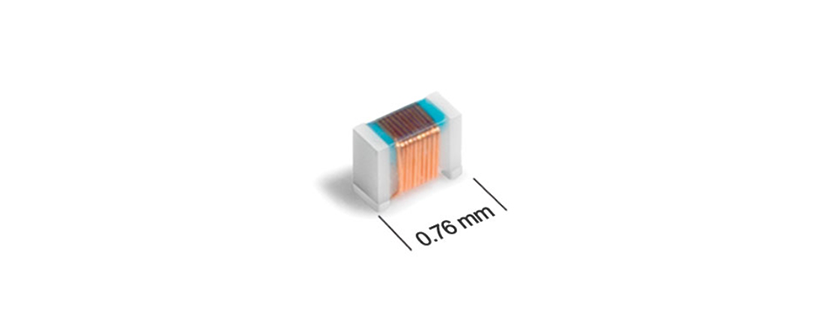

026011C-39NXJR_ RF Inductor by Coilcraft

The 026011C-39NXJR_ from Coilcraft is a RF Inductor with Inductance 0.039 uH, DC Resistance 1 Ohms, DC Current 175 mA (Irms), Self Resonant Frequency 3.75 GHz, Operating Temperature -40 to 125 Degree C. Tags: Ceramic Inductor, Chip Inductor, Wire Wound Inductor. More details for 026011C-39NXJR_ can be seen below.

Product Details

• Part Number: 026011C-39NXJR_
• Manufacturer: Coilcraft
• Description: 3.75 GHz (SRF), Ceramic Chip Wire Wound Inductor with 39 nH Inductance


General Parameters

• Applications: 5G, LTE
• Inductance: 0.039 uH
• DC Resistance: 1 Ohms
• DC Current: 175 mA (Irms)
• Dimension: 0.76 x 0.33 x 0.55 mm( L x W x T)
• Self Resonant Frequency: 3.75 GHz
• Mounting: Surface Mount
• Length: 0.76 mm
• Industry Applications: Cellular
• Width: 0.33 mm
• Thickness: 0.55 mm
• RoHS: Yes
• Type: Ceramic Inductor, Chip Inductor, Wire Wound Inductor
• Operating Temperature: -40 to 125 Degree C
• Quality Factor: 42 to 55
• Storage Temperature: -40 to 140 Degree C
• Weight: 0.14 to 0.24 mg
