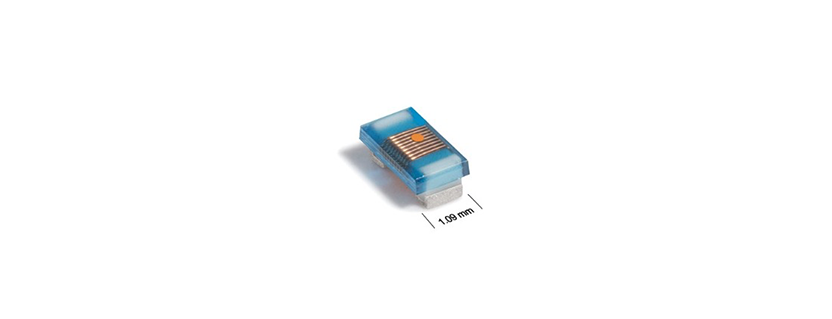

0603HP Series RF Inductor by Coilcraft

The 0603HP Series from Coilcraft are Ceramic Chip Inductors with inductance values from 1.8 to 390 nH. They have a high Q-factor of up to 157 (at 1.7 GHz) and self-resonant frequency (SRF) values ranging from 0.88 to 16 GHz. These inductors have DC resistances of less than 4 Ohms and a current rating of up to 2100 mA. They are available in a compact 1608 package size.

Product Details

• Part Number: 0603HP Series
• Manufacturer: Coilcraft
• Description: Ceramic Chip Inductors from 1.8 to 390 nH


General Parameters

• Inductance: 1.8 to 390 nH
• DC Resistance: 0.033 to 4 Ohms
• DC Current: 0.170 to 2.1 A
• Self Resonant Frequency: 880 MHz to 16 GHz
• Mounting: Surface Mount
• Thickness: 1.09 mm
• RoHS: Yes
• Type: Ceramic Inductor
• Operating Temperature: -40°C to +125°C
• Quality Factor: Up to 154
• Storage Temperature: -40°C to +140°C
• Tolerance: 2, 3, 5 %
• Weight: 2.0 – 3.2 mg
