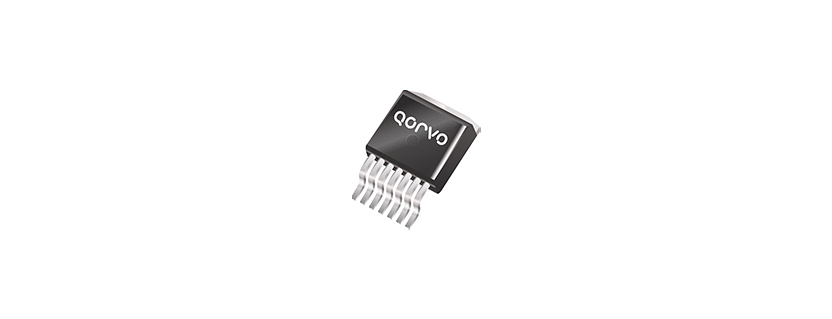

UF4SC120030B7S
1200 V, 30 mohm SiC FET by Qorvo
Key Features
- On Resistance RDS(on): 30 mohm (typ)
- Operating temperature: 175C (max)
- Excellent reverse recovery: Qrr = 164nC
- Low body diode VFSD: 1.22V
- Low gate charge: QG = 37.8nC
- Low intrinsic capacitance
- ESD Protected: HBM Class 2
This SiC FET device is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.The device’s standard gate-drive characteristics allows use of off-the-shelf gate drivers hence requiring minimal re-design when replacing Si IGBTs, Si superjunction devices or SiC MOSFETs. Available in the space-saving D2PAK-7L package which enables automated assembly, this device exhibits ultra-low gate charge and exceptional reverse recovery characteristics, making it ideal for switching inductive loads and any application requiring standard gate drive.
| VDS Max(V) | 1,200 |
| RDS(on) Typ @ 25C(mohm) | 30 |
| ID Max(A) | 56 |
| Generation | Gen 4 |
| Tj Max(°C) | 175 |
| Automotive Qualification | Yes |
| Package Type | D2PAK-7L |
Data Sheets
- Product Data Sheet Rev A – 10/2023
Application Notes
- Cascode Configuration Eases Challenges of Applying SiC JFETs (UnitedSiC AN0004) 03/2016
- ESD Ratings of UnitedSiC FETs and JFETs (UnitedSiC AN0027) 03/2021
- How to Slow Down dV/dt During Switching (UnitedSiC AN0024) 08/2020
- Switching Fast SiC FETs with a Snubber (UnitedSiC AN0018) 11/2018
- Using UnitedSiC SPICE Model in LTSPICE (UnitedSiC AN0005) 08/2019
CAD Layout Files
Package Information
Qualification Reports
- Qualification Report Rev B – 05/2024
Simulation Files
User Guides
- Paralleling SiC FETs – Best Practices 02/2024
- Qorvo Surface Mount Technology Devices 09/2021
- SiC FET & Module User Guide Rev A – 09/2024
