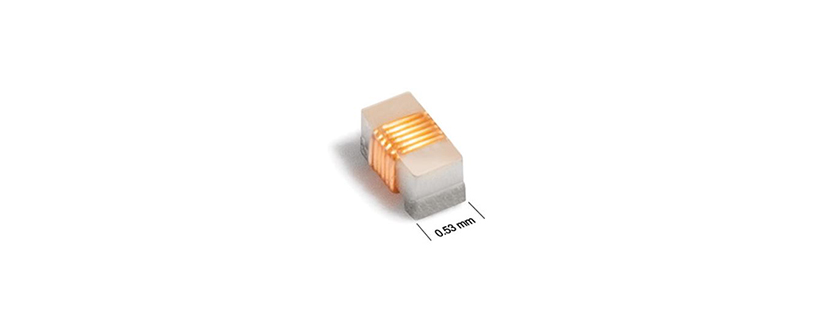

0302CS-22NXJR_ RF Inductor by Coilcraft

The 0302CS-22NXJR_ from Coilcraft is a RF Inductor with Inductance 0.022 uH, DC Resistance 0.42 Ohms, DC Current 340 mA, Self Resonant Frequency 4.95 GHz, Operating Temperature -40 to 125 Degree C. Tags: Ceramic Inductor, Chip Inductor. More details for 0302CS-22NXJR_ can be seen below.

Product Details

• Part Number: 0302CS-22NXJR_
• Manufacturer: Coilcraft
• Description: 4.95 GHz (SRF), High Q Ceramic Chip Inductor 22 nH


General Parameters

• Inductance: 0.022 uH
• DC Resistance: 0.42 Ohms
• DC Current: 340 mA
• Dimension: 0.86 x 0.53 x 0.45 mm(L x W x T)
• Self Resonant Frequency: 4.95 GHz
• Mounting: Surface Mount
• Length: 0.86 mm
• Width: 0.53 mm
• Thickness: 0.45 mm
• RoHS: Yes
• Type: Ceramic Inductor, Chip Inductor
• Operating Temperature: -40 to 125 Degree C
• Quality Factor: 52 to 94
• Storage Temperature: -40 to 155 Degree C
• Tolerance: 5%
• Weight: 0.4 to 0.5 mg
