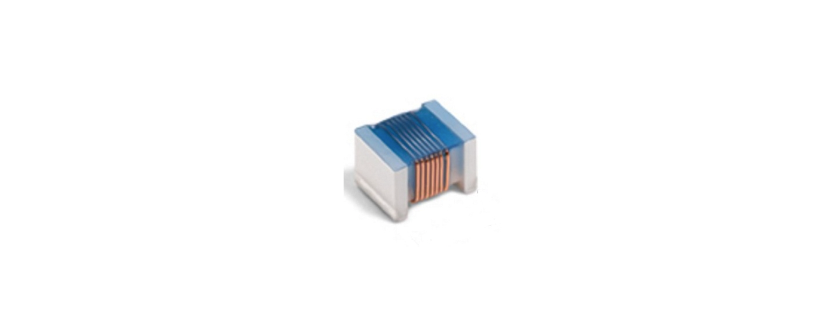

0805HP-47NX RF Inductor by Coilcraft

The 0805HP-47NX from Coilcraft is a RF Inductor with Inductance 0.047 uH @ 200 MHz, DC Resistance 0.093 Ohms, DC Current 1 A, Self Resonant Frequency DC to 9.5 GHz, Operating Temperature -40 to 125 Degree C. Tags: Ceramic Inductor, Chip Inductor, Wire Wound Inductor. More details for 0805HP-47NX can be seen below.

Product Details

• Part Number: 0805HP-47NX
• Manufacturer: Coilcraft
• Description: 47 nH High Q Factor, Ceramic Chip Inductors


General Parameters

• • Inductance: 0.047 uH @ 200 MHz
  • DC Resistance: 0.093 Ohms
  • Bulk Package: Tape & Reel
  • DC Current: 1 A
  • Self Resonant Frequency: DC to 9.5 GHz
  • Mounting: Surface Mount
  • Length: 2.21 mm
  • Width: 1.73 mm
  • Thickness: 1.55 mm
  • RoHS: Yes
  • Type: Ceramic Inductor, Chip Inductor, Wire Wound Inductor
  • Operating Temperature: -40 to 125 Degree
  • Quality Factor: 105 @ 500 MHz
  • Storage Temperature: -40 to 140 Degree C
  • Tolerance: ±2%, ±5%
  • Weight: 9.5 to 12.5 mg
