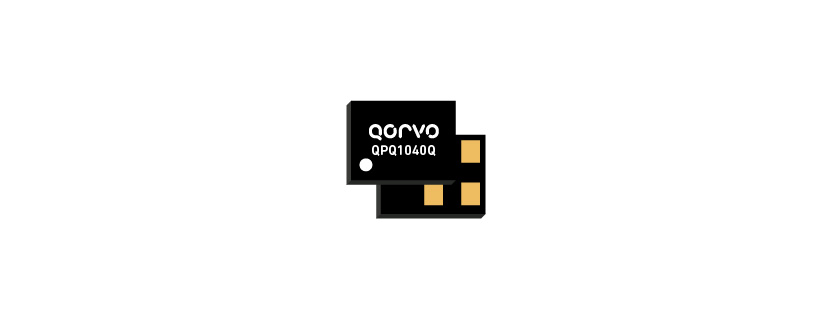

Qorvo QPQ1040Q
Band 40 Automotive AEC-Q Grade 3 Filter
The QPQ1040Q is a high-performance, high power Bulk Acoustic Wave (BAW) TX filter designed to meet the strict LTE/NR rejection requirements for use in B40/n40. The QPQ1040Q is specifically designed to meet the high-performance expectations of insertion loss and rejection for LTE/NR transmit systems under all operating conditions in NAD (Network Attached Device) applications.
| Technology | BAW |
| Type | Automotive |
| Bands | B40 / n40 |
| Frequency(MHz) | 2,300 to 2,400 |
| Bandwidth(MHz) | 100 |
| Insertion Loss(dB) | 30 @ 1710–1785 MHz, 37 @ 2110–2170 MHz, 40 @ 2433–2481 MHz |
| Package Type | 5-pin Leadless SMT |
| Package(mm) | 1.1 x 0.91 x 0.55 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | 5A991G |
Data Sheets: Product Data Sheet, Rev C
CAD Layout Files, PCB Symbol, Footprint & 3D Model (provided by SamacSys)
