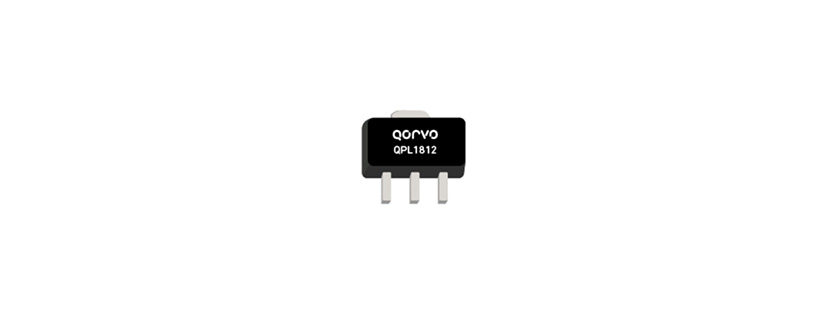

QPL1812 RF Amplifier by Qorvo

The QPL1812 from Qorvo is a RF Amplifier with Frequency 0.005 to 1.8 GHz, Gain 19 dB, Noise Figure 3.5 dB, Output Power 21 dBm, Output Power 0.12 W. Tags: Surface Mount, CATV Amplifier. More details for QPL1812 can be seen below.

Product Details

• Part Number: QPL1812
• Manufacturer: Qorvo
• Description: High Linearity CATV Amplifier from 0.005 to 1.8 GHz


General Parameters

• Type: CATV Amplifier
• Configuration: IC/MMIC/SMT
• Standards Supported: CATV, DOCSIS
• Frequency: 0.005 to 1.8 GHz
• Gain: 19 dB
• Noise Figure: 3.5 dB
• Output Power: 21 dBm
• Output Power: 0.12 W
• Impedance: 75 Ohms
• Pulsed/CW: C
• Supply Voltage: 8 V
• Current Consumption: 180 mA
• Technology: pHEMT, MMIC
• Package Type: Surface Mount
• Package: SOT-89 package
• RoHS: Yes
