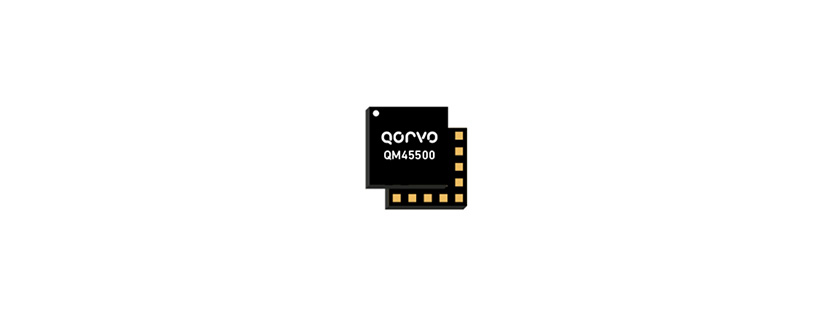

QM45500 Front End Module by Qorvo

Product Details

• Part Number: QM45500
• Manufacturer: Qorvo
• Description: Wi-Fi 7 Front End Module from 5 to 7 GHz


General Parameters

• Type: Transmit Module
• Configuration: Power Amplifier, Switch, Low Noise Amplifier
• Switch Configuration: SP3T
• Application: WiFi, Cellular
• Wireless Standard: 802.11 be, Wi-Fi 7
• Bands: Single Band
• Frequency: 5.150 to 7.115 GHz
• Tx Frequency: 5.150 to 7.115 GHz
• Current: 10 to 260 mA
• Tx Power: 13.5 to 19 dBm
• Tx Gain: 29 dB
• Voltage: 3.85 V
• Rx Gain: 12 to 14 dB
• Rx Noise Figure: 2.3 dB
• Rx Current: 10 mA
• Package Type: Surface Mount
• Dimensions: 2 x 2 mm
