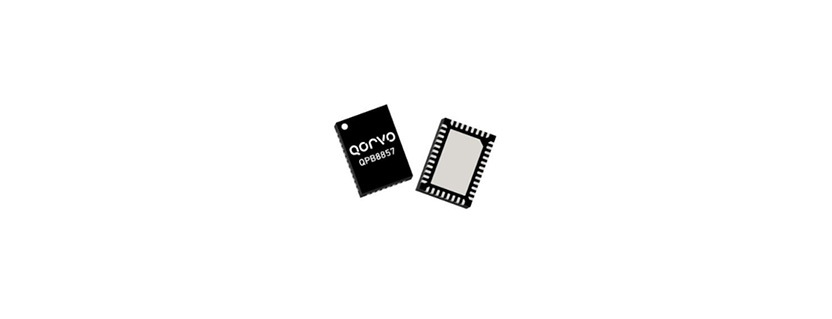

QPB8857 RF Amplifier by Qorvo
The QPB8857 from Qorvo is a RF Amplifier with Frequency 0.005 to 1.218 GHz, Gain 28 dB, Gain Flatness ±0.5 dB, Noise Figure 4.5 dB, Output Power 31 dBm. Tags: Surface Mount, CATV Amplifier. More details for QPB8857 can be seen below.
Product Details
- Part Number: QPB8857
- Manufacturer: Qorvo
- Description: CATV Doubler Amplifier from 0.005 to 1.218 GHz
General Parameters
- Type: CATV Amplifier
- Configuration: IC/MMIC/SMT
- Standards Supported: CATV, DOCSIS
- Composite Second Order: -81 dBc
- Composite Triple Beat: -83 dBc
- Frequency: 0.005 to 1.218 GHz
- Gain: 28 dB
- Gain Flatness: ±0.5 dB
- Noise Figure: 4.5 dB
- Output Power: 31 dBm
- Output Power: 1.25 W
- P1dB: 31 dBm
- P1dB: 1.25 W
- IP2: 88 to 92 dBm
- IP2: 630957.34 to 1584893.19
- IP3: 48 to 53 dBm
- IP3: 63.09 to 199.52 W
- Input Power: 21.24 dBm
- Input Power: 0.133 W
- Impedance: 75 Ohms
- Pulsed/CW: CW
- Reverse Isolation: -42 dB
- Sub-Category: Hybrid Amplifier
- Return Loss: 18 dB
- Input Return Loss: 18 dB
- Output Return Loss: 18 dB
- Supply Voltage: 24 V
- Current Consumption: 440 mA
- Technology: GaAs, pHEMT, MESFET
- Package Type: Surface Mount
- Package: QFN Package
- Dimensions: 5 x 7 mm
- Operating Temperature: -40 to 90 Degree C
- Storage Temperature: -65 to 150 Degree C
- RoHS: Yes
- Note: CCN: 60 dB
