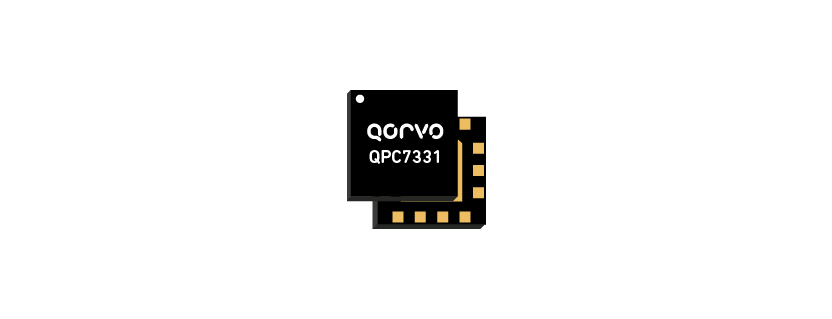

Qorvo QPC7331
5 MHz to 834 MHz Variable Cable Slope Equalizer
Key Features
- 5 – 834 MHz Operational Bandwidth
- Cable compensated Response slope
- 2 to 18 dB slope range
- Low Insertion loss
- High linearity
- 75 Ohm impedance for CATV applications
- 5 V single supply voltage
- Low power consumption
The QPC7331 is a voltage controlled variable equalizer with a cable Compensated response employing SOI attenuator, optimized for DOCSIS 4.0 Upstream bandwidth applicatioins between 5 MHz and 834 MHz
| Frequency Min(MHz) | 5 |
| Frequency Max(MHz) | 834 |
| Insertion Loss(dB) | > 2 |
| Attenuation Range(dB) | 2 to 18 |
| IIP3(dBm) | 50 |
| Voltage(V) | 5 |
| Package Type | 14 Pin MCM |
| Package(mm) | 6.0 x 6.0 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | 5A991B |
