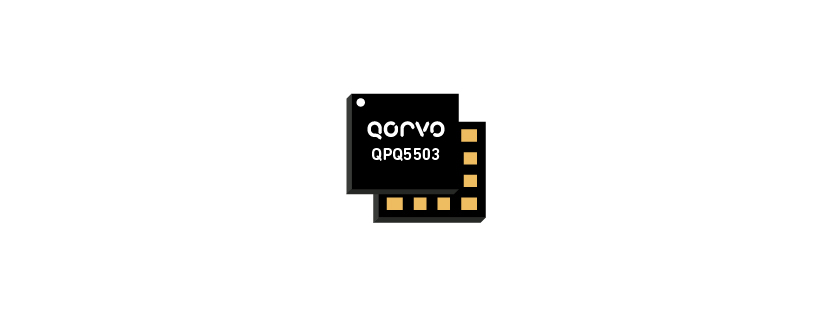

Qorvo QPQ5503 5GHz Wi-Fi U-NII 1-3 bandBoost Filter
Key Features
- 5170-5835 MHz
- Low Insertion Loss in Wi-Fi UNII 1-3 bands
- High Rejection in Wi-Fi UNII 5-8 bands
- Extended temperature performance from -20 to +95 °C
- High power handling to +28dBm averaged Input Power
- Integrated match
- Low Insertion Loss in Wi-Fi UNII 1-3 bands
- High Rejection in Wi-Fi UNII 5-8 bands
- Extended temperature performance from -20 to +95 °C
The Qorvo® QPQ5503 is an high-performance, high power, Bulk Acoustic Wave (BAW) band-pass filter with extremely steep skirts, simultaneously exhibiting low loss in the Wi-Fi UNII 1-3 band and high near-in rejection in the UNII5-8 band.
The filter module is specifically designed to enable industry leading capacity performance in Wi-Fi applications that result in higher power capability in more Wi-Fi channels than systems with no or traditional filter solutions. End users will see a better capability to deliver features that take advantage of sub-banding the 5GHz from 6GHz Wi-Fi spectrum in use cases such as tri-radio Wi-Fi mesh applications.
Using common module packaging techniques to achieve the industry standard footprint while negating as many external passive placements to help end users ease of integration into their circuits.
| Technology | BAW |
| Type | Infrastructure |
| Bands | U-NII 1-3 |
| Frequency (MHz) | 5,170 to 5,835 |
| Bandwidth (MHz) | 160 |
| Insertion Loss (dB) | 1.7 |
| Package Type | Laminate |
| Package (mm) | 1.8 x 1.6 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | 5A991G |
