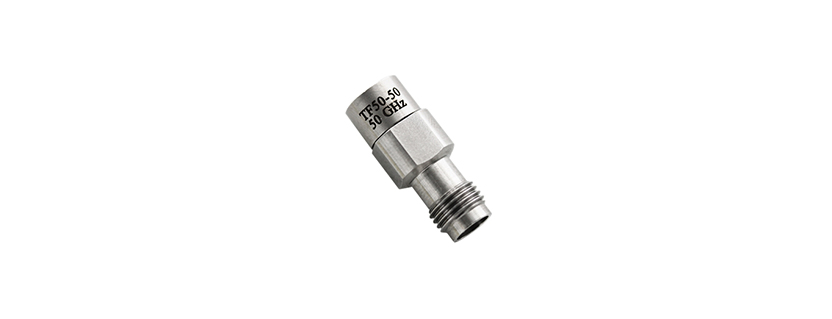

TF50-50 Termination by Marki Microwave
The TF50-50 from Marki Microwave is an RF Termination that operates from DC to 50 GHz. It can handle an input power of 1 W, has a VSWR of less than 1.15:1. This termination is available in a module that measures 0.82 x 0.31 inches and has an 2.4mm (female) connector. It is ideal for test equipment, broadband loading, and precision characterization applications.
This 50-Ohm termination has an EAR99 export classification.
Product Details
- Part Number: TF50-50
- Manufacturer: Marki Microwave
- Description: 2.4mm Female Termination from DC to 50 GHz
General Parameters
- Type: Coaxial Termination
- Frequency: DC to 50 GHz
- Power: 0 to 1 W
- Impedance: 50 Ohms
- Application: Instrumentation, Laboratory, Test & Measurement
- Application Type: Broadband Loading, Precision Characterization, Test Equipment
- Connector: 2.4 mm
- Connector Gender: Female
- Connector Housing: Passivated Stainless Steel
- Connector Pin: Beryllium Copper Gold Plated
- Return Loss: 31 dB
- Package Type: Module with Connectors
- Package: 2.4 mm Termination Package
- Length: 20.8 mm
- Diameter: 8 mm
- Operating Temperature: -40 to 105 Degree C
- Storage Temperature: -40 to 105 Degree C
- Rohs: Yes
