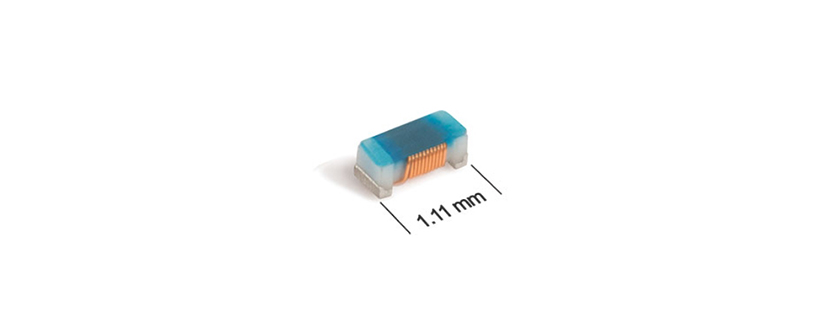

0402CT-47NX_RW RF Inductor by Coilcraft
The 0402CT-47NX_RW from Coilcraft is a RF Inductor with Inductance 0.047 uH, DC Resistance 900 mOhms, DC Current 180 to 320 mA, Self Resonant Frequency 3.9 GHz, Operating Temperature -40 to 125 Degree C. More details for 0402CT-47NX_RW can be seen below.
Product Details
- Part Number: 0402CT-47NX_RW
- Manufacturer: Coilcraft
- Description: 47 nH, Low Profile Chip Inductor with 3.9 GHz (SRF)
General Parameters
- Inductance: 0.047 uH
- DC Resistance: 900 mOhms
- DC Current: 180 to 320 mA
- Dimension: 1.11 x 0.61 x 0.45 mm( L x W x T)
- Self Resonant Frequency: 3.9 GHz
- Mounting: Surface Mount
- Length: 1.11 mm
- Width: 0.61 mm
- Thickness: 0.45 mm
- RoHS: Yes
- Operating Temperature: -40 to 125 Degree C
- Quality Factor: 43, 49
- Storage Temperature: -40 to 140 Degree C
- Tolerance: ±2%, ±3%, ±5%
- Weight: 0.6 to 0.8 mg
