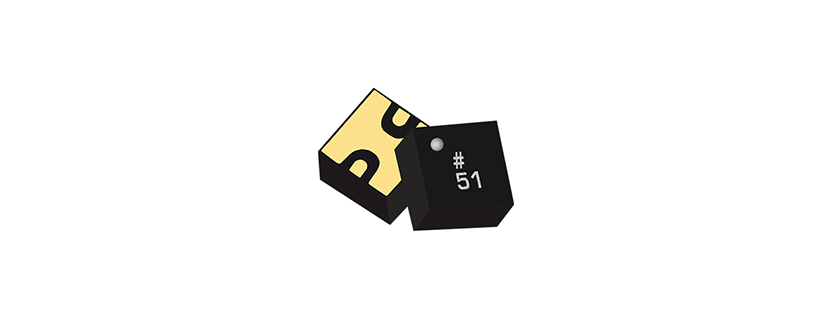

MEQ6-67CSP1 Gain Equalizer by Marki Microwave
The MEQ6-67CSP1 from Marki Microwave is an MMIC Equalizer that provides a positive slope equalization from DC to 67 GHz. It has an equalization value of 5.5 dB, a DC attenuation of 6.0 dB, and a group delay of 15 ps. This equalizer has an insertion loss of less than 3 dB and a return loss of 25 dB. It is designed for RF systems that prioritise SWAP and compensates for frequency-dependent losses while improving gain flatness across broadband signal chains. This positive slope equalizer is available in a CSP1 package that measures 1.5 x 1.5 mm. It is ideal for RF transceivers, high-speed data, telecom, amplifier compensation, frequency-dependent loss and compensation applications.
Product Details
- Part Number: MEQ6-67CSP1
- Manufacturer: Marki Microwave
- Description: Positive Slope MMIC Equalizer from DC to 67 GHz
General Parameters
- Type: Positive Gain Slope
- Application: Amplifier Compensation, RF Transceivers, Telecom
- Application Type: Frequency-Dependent Loss Compensation, High-Speed Data
- Frequency: DC to 67 GHz
- Gain Equalization: 5.5 dB
- Insertion Loss: 1 to 3 dB
- Power: 1 W
- return_loss: 25 dB
- Package Type: Surface Mount
- Voltage Controlled: Yes
- Package: CSP1
- Dimensions: 1.5 x 1.5 mm
- Current: 25 mA
- Operating Temperature: -55 to 100 Degree C
- Storage Temperature: -65 to 125 Degree C
- Grade: Commercial
- Note: Group Delay:15 ps
