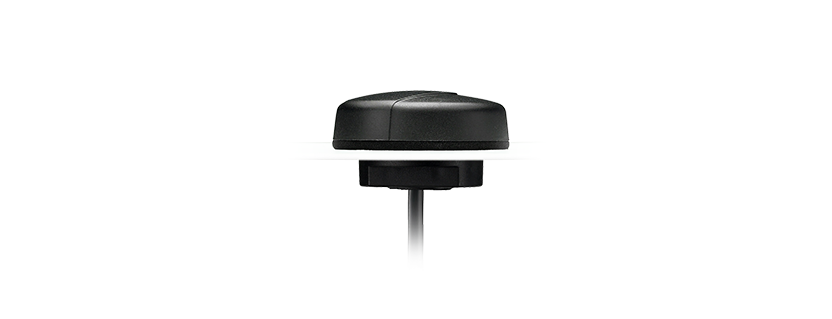

New Taoglas Ultima A.30.B Permanent Mount GPS/GLONASS/Beidou
- Ultima GPS/GLONASS/GALILEO Antenna
- Permanent Mount
- GPS/GLONASS/GALILEO – Total Gain 28 dB at 3.0 V
- GPS/GLONASS/GALILEO – 3m RG174LL – SMA(M)
- No Ground Plane Required
- Dimensions: 55.4 x 55.4 x 20.6 mm
- IP67 Rated Enclosure
Overview
Lowest Profile External Antenna on the MarketEmpty heading
The A.30 Ultima Series GPS/GLONASS/GALILEO Antenna is a low profile combination high-performance GPS/GLONASS/GALILEO antenna solution for professional telematics applications. At only 22 mm height it is one of the lowest profile antenna in the market, with a diameter of 55 mm. Durable UV resistant PC housing, thread, and nut withstands vandalism and direct attack. The IP67 waterproof robust plastic body makes it extremely light, economical for shipping and with minimum weight impact on vehicles. This also makes it ideal for use in humid environments such as water pits or marine applications as there are no external metal parts to corrode. The closed-cell foam with double-sided adhesive provides a permanent waterproof seal and can adjust to different curvatures, stopping water from leaking under the antenna into the mounting hole.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw Mount |
| Termination Style | Connector |
| Connector Type | SMA |
| Length (mm) | 55.4 |
| Width (mm) | 55.4 |
| Height (mm) | 20.6 |
| Cable Type | RG-174LL |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1561Hz – 1602Hz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2.0:1 |
| Weight (g) | 85 |
| RoHS | Yes |
| Gain (Max) | 28 |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
