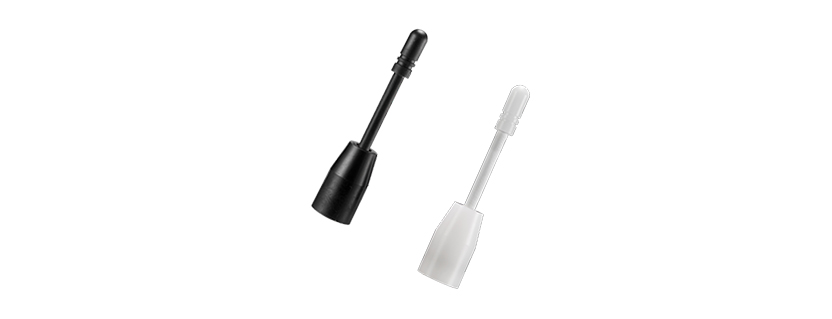

New Taoglas FW.79.M6.F ISM/LoRa (700-900 MHz) Flexible Whip Antenna with M6(F) Connector

• Flexible Whip Antenna
• Covering: 700-900 MHz
• IP67 Rated Enclosure
• Dims: Ø14 x 65.8 mm
• Connector: M6 Female
• RoHS & Reach Compliant

Overview

The FW.79 is a compact, flexible whip antenna designed for reliable performance within the 700–900 MHz frequency band. Engineered with an M6 female connector, this antenna is ideal for mission-critical applications requiring durable and secure RF connectivity in demanding environments.

Its robust POM housing and wide operating temperature range ensure consistent performance across various industrial and commercial use cases. With optimized return loss and VSWR characteristics, the FW.79 offers an efficient solution for devices requiring compact form factor antennas without compromising RF performance.

Typical Applications:

• Private Mobile Radio (PMR) systems
• Land Mobile Radio (LMR) equipment
• Emergency services communications (police, fire, ambulance)
• Military and defense communication gear
• Transportation and logistics communication systems

The FW.79 connector can be customized subject to NRE, for further information please contact your regional Taoglas customer support team.

Technical Specification

Name	Value
Technology	External Antennas, ISM/LoRA
IP Rating	IP67
Impedance	50
Minimum Operating Temperature (℃)	-40
Maximum Operating Temperature (℃)	85
Mounting Style	Terminal
Termination Style	Connector
Connector Type	M6 Female
Length (mm)	14
Width (mm)	14
Height (mm)	65.8
Connector Body Style	Straight
Polarity	Linear
Frequency Range	700 MHz – 900 MHz
Connector Polarity	Normal
VSWR	<2:1
Weight (g)	10.6
RoHS	Yes
Gain (Max)	1.72
