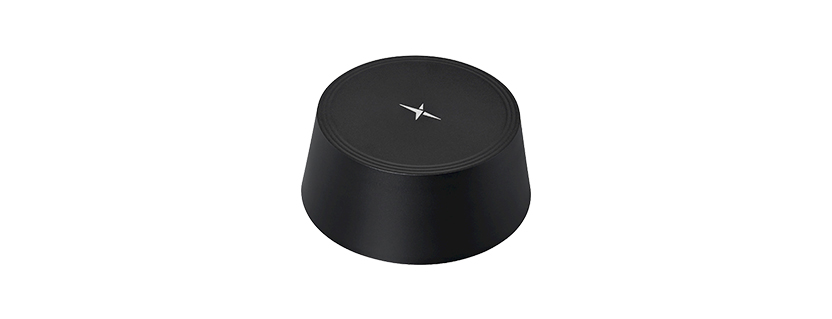

New Taoglas SynergyX MA1558 8-in-1 1x Active Multi-Band GNSS, 4*5G/4G MIMO and 3*Wi-Fi® MIMO Antenna
- Low-profile Permanent Mount Enclosure
- 4x 5G/4G MIMO 600-6000MHz
- 4x Wi-Fi® MIMO 2.4/5.8/7.125 GHz (Including Wi-Fi® 6)
- 1x Multiband GNSS
- Worldwide 5G/4G Bands
- IP67 Waterproof Enclosure
- Dimensions: Ø161.3mm * 67mm
- Cable: 3m Braided TGC-200/RG-174
- Connectors: SMA(M)/RP-SMA(M)
- RoHS & Reach Compliant
Overview
SynergyX MA1558 8-in-1 – 1 Active Multi-Band GNSS, 4*5G/4G MIMO and 3*Wi-Fi® MIMO Antenna
The Taoglas SynergyX MA1558 is a 8-in-1 next-generation permanent mount antenna designed for exceptional performance when used in conjunction with the next generation of routers.
It has been designed for high precision applications and provides excellent performance on the full GNSS spectrum including (GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, NAVIC L5, as well as SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS) for high-performance cm-level positional accuracy which allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments with their device and with the next generation of routers.
The 8 antennas inside support 5G/4G, Multi-Band GNSS, and Wi-Fi® (2.4GHz/5-7.125GHz). The 5G/4G antennas are wideband 600MHz to 6GHz to cover the full spectrum of 5G frequencies. The Wi-Fi® antenna includes Wi-Fi® 6 and 7 capabilities to ensure your design is future-proof for the next generation of Router connectivity.
Combining Multi-band GNSS, 5G/4G, Wi-Fi® 6, and an incredibly compact PC enclosure with a fully IP67 rated waterproof, The Synergy X MA1558 is the right powerful, compact combination antenna for your application.
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
The SynergyX MA1558 is the latest external addition to an ongoing product roadmap of high precision antennas by Taoglas. For RTK applications when used on the base and/or the rover, the MA1558 can achieve genuine cm-level accuracy.
Cable and connectors are customizable. Please contact your regional Taoglas customer support team for further information.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Length (mm) | 160 |
| Width (mm) | 160 |
| Height (mm) | 67 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz – 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 300 |
| VSWR | <2.5 |
| Weight (g) | 1005 |
| RoHS | Yes |
| Gain (Max) | 1.36 |
