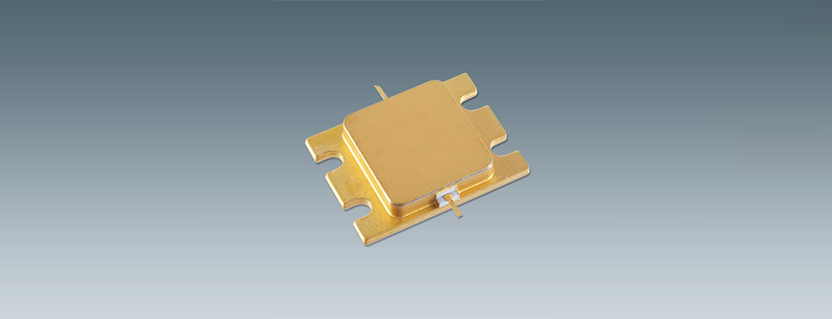

SGC9395-300B-R by Sumitomo Electric Device Innovations
| Part Number |
SGC9395-300B-R |
| Class |
GaN Product > GaN HEMTs for Radar > Marine |
| Outline / Package Code |
IK
|
| Function |
X-Band Internally Matched GaN-HEMT |
| Features |
- High Output Power: Psat=55.3dBm (Typ.)
- High Gain: Gp=9.3dB (Typ.)
- High Power Added Efficiency: PAE=38% (Typ.)
- Broad Band: 9.3 to 9.5GHz
- Impedance Matched Zin/Zout = 50Ω
- Hermetically Sealed Package
|
| Description |
The SGC9395-300B-R is a high power GaN-HEMT that is internally matched for X-band radar bands to provide optimum power and gain in a 50Ω system. |
| Datasheet |
(400KB) |
| Frequency f (GHz) |
9.3-9.5 |
| Pout (dBm) |
55.3 |
| Gp (dB) |
9.3 |
| Efficiency (%) |
38 |
| VDS (V) |
50 |
| IDS (DC) (A) |
1 |
| Rth (°C/W) |
0.7 |
| Conditions |
Pulse Width: 100µsec, Duty 10% |
| Note |
Tc(op)=+25°C |
Courtesy of Sumitomo Electric Device Innovations
