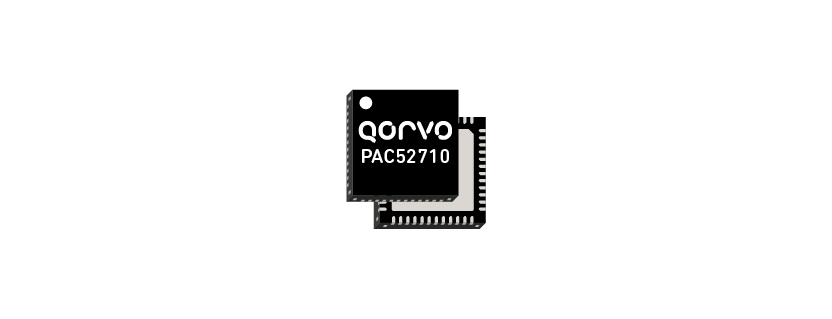

Qorvo PAC52710
72 V BLDC Controller and Driver with Integrated Multimode Power Manager and Configurable AFE with VDS sensing
Key Features
- 50 MHz Arm Cortex M0
- 32 kB Flash, 8 kB SRAM
- 72 V Buck/SEPIC DC/DC Controller with external NCH FET
- 5 V / 200 mA system supply
- 3 High-side 72 V 1.2 A (source) / 1.8 A (sink) gate drivers
- 3 Low-side 20 V 1.2 A (source) / 1.8 A (sink) gate drivers
- VDS sensing
- Advanced cycle-by-cycle protection
- 3 differential PGAs (x1–x48)
- 4 single PGAs (x1–x48)
- Programmable over-current shutdown
- Programmable comparator hysteresis and blanking
- Simultaneous sample and hold for 3 phase
Qorvo’s PAC52710 expands Qorvo’s portfolio of Power Application Controller® (PAC) products designed for controlling and powering smart energy appliances and equipment. The device introduces additional capabilities such as VDS sensing, cycle-by-cycle protection, enhanced sample and hold, and a windowed watchdog timer.
The application controller integrates a 50 MHz Arm Cortex-M0 32-bit microcontroller core with Qorvo’s Multi-Mode Power Manager™, Configurable Analog Front End™, and Application Specific Power Drivers™ to form a compact microcontroller-based power and application system.
The microcontroller includes up to 32 kB embedded flash and 8 kB SRAM, a high-speed 10-bit 1 µs ADC with dual auto-sampling sequencers, 5 V / 3.3 V I/O support, flexible clock sources, timers, a 14-channel PWM engine, and several serial communication interfaces.
Typical Applications
- Industrial BLDC motor control (pumps, fans, robotics)
- Power and garden tools
- Small appliances
- E-mobility
Specifications
| Power Supply Input Voltage | 5.2 V – 72 V |
| Power Supply Topology | 72 V Buck |
| Gate Drivers (High Side) | 3 @ 72 V – 1.2 A source / 1.8 A sink |
| Gate Drivers (Low Side) | 3 @ 20 V – 1.2 A source / 1.8 A sink |
| Microcontroller | 50 MHz ARM Cortex-M0 |
| MCU Flash | 32 kB |
| MCU SRAM | 8 kB |
| MCU ADC | 10-bit 1 MSPS SAR |
| MCU GPIOs | 16 Digital GPIOs + 10 Analog IO |
| MCU PWMs | 4 |
| Serial Interfaces | UART, SPI, I²C |
| Differential Amplifiers | 3 |
| Single Amplifiers | 4 |
| ADC Channels | 10 |
| Package Type | TQFN 48-pin |
| Package Size | 6 mm × 6 mm |
Compliance
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | EAR99 |
Data Sheet
Application Notes
- Converting Firmware to CoIDE and IAR
- Outdoor Power Equipment Design Guide
- PAC52xx Clock Control Firmware Design
- PAC52xx Configuring the CAFE
- PAC52xx FLASH Memory Controller
- PAC52xx GPIO Firmware Design
- PAC52xx Multi-Mode Power Manager
- PAC52xx PCB Layout Guidelines
- Temperature Sensing and Protection
- Using Watchdog SysTick and Timers
- PCB Layout Guidelines for QFN
- Motor Control and Drive System Guide
User Guides
Evaluation Kit
PAC52710EVK1 Evaluation Kit
The PAC52710EVK1 development platform allows engineers to evaluate the PAC52710 device and develop power applications using the integrated Arm Cortex-M0 controller.
Software
- Six Step Application Firmware
- PAC FOC Application Firmware
- PAC52xx Software Development Kit
- PAC52xx Example Code
- ActiveFlashLight Bootloader
Tutorial Videos
PAC5xxxEVK1 Setup and First Run
IDE Support
- PAC52xx Keil IDE Guide
- Keil Pack Upgrade Guide
- IAR IDE Support
- Eclipse IDE with PAC Support
- Segger J-Link Support
Development of application firmware for PAC52xx Arm Cortex M0 is made easy with standard integrated development environments (IDEs). Several of the most popular IDEs support PAC52xx devices including Keil uVision and IAR Systems Embedded Workbench for Arm. Eclipse development is possible using J-Link by downloading and installing the Eclipse with PAC support package.
| PAC52xx Keil IDE Guide Version: 2018-08-21 |
Guide for installing Keil uVision for development of PAC52xx application firmware. |
| PAC52xx Keil .pack v1.0.9 to v2.0.0 upgrade Version: 2018-02-22 |
Guide for upgrading the Keil uVision PAC52xx pack from v1.0.9 to v2.0.0. |
| PAC IAR Support Version: 2025-09-30 |
PAC IAR Systems Embedded Workbench IDE installation guide and patches. |
| Eclipse with PAC Support Version: v1.1.0 2019-03-27 |
Installer for Eclipse and supporting plugins for development on the PAC family of devices. |
| Segger J-Link Support Version: 2019-10-23 |
PAC support files for Segger J-Link debuggers. |
| OpenOCD Support Version: 1.0.1 2020-11-02 |
PAC support files for miscellaneous debuggers. |
