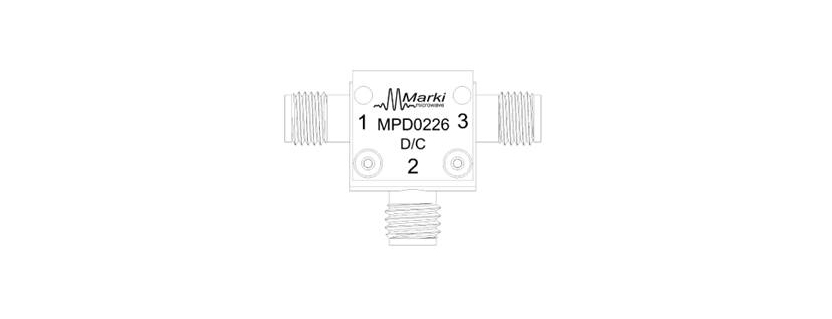

MPD-0226BH Power Divider / Combiner by Marki Microwave
The MPD-0226BH from Marki Microwave is a Power Divider / Combiner with Frequency 2 to 26.5 GHz, Insertion Loss 1 dB, Isolation 26 dB, Input Power 2 to 20 W, Phase Balance 2.6 Degrees. Tags: Module with Connectors, Wilkinson Power Divider, Multi-Octave Power Divider. More details for MPD-0226BH can be seen below.
Product Details
- Part Number: MPD-0226BH
- Manufacturer: Marki Microwave
- Description: 2-Way Wilkinson Power Divider/Combiner from DC to 26.5 GHz
General Parameters
- Configuration: 2 Way
- Type: Wilkinson Power Divider, Multi-Octave Power Divider
- Frequency: 2 to 26.5 GHz
- Insertion Loss: 1 dB
- Isolation: 26 dB
- Power Split Ratio: 3 dB
- Input Power: 2 to 20 W
- Phase Balance: 2.6 Degrees
- Impedance: 50 Ohms
- Return Loss: 18 to 20 dB
- Return Loss Output: 20 dB
- Package Type: Module with Connectors
- Connector: 2.92 mm, 2.92 mm – Female
- Input Connector: 2.92 mm – Female
- Output Connector: 2.92 mm – Female
- Dimension: 29.01 x 19.84 mm
- Weight: 12 g
- RoHS: Yes
- Storage Temperature: -65 to 125 Degree C
- Operating Temperature: -55 to 100 Degree C
