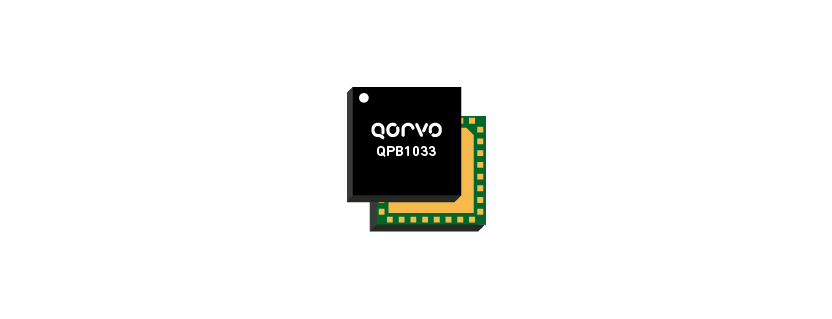

Qorvo QPB1033 S-Band Switched Filter Bank Module
The QPB1033 from Qorvo is a 6-Channel Switched Filter Bank Module that operates from 2700 to 3300 MHz and is designed for use in S-Band aerospace and defense radar applications. It is fabricated using BAW technology and integrates six filter channels with bypass functionality in a single-input, single-output configuration. This switched filter bank module has an insertion loss of less than 6.5 dB, has high out-of-band rejection and does not require external matching. The QPB1033 is available in an SMT package measuring 6.00 × 6.00 × 0.78 mm. This RoHS-compliant, Pb-free module is halogen-free and has an EAR99 export classification.
Key Features
- S-Band: 2700–3300 MHz
- Six Channels and Bypass
- Low Loss
- No External Matching Required
- Single Input, Single Output Operation
- Size: 6.00 x 6.00 x 0.78 mm
- Surface Mount Device
- RoHS Compliant, Pb-Free
The QPB1033 is an S-Band switched filter bank module that integrates two switches on both sides of six filters and a bypass. This module is housed in a 6 x 6 mm package for radar applications. Low insertion loss, coupled with BAW’s high out-of-band rejection, makes this switched filter bank an ideal choice for S-Band D&A applications.
The QPB1033 is part of Qorvo’s extensive portfolio of RF BAW and SAW filters and modules.
| Technology | BAW |
| Type | D&A |
| Bands | S-Band |
| Frequency (MHz) | 2,700 to 3,300 |
| Bandwidth (MHz) | 100 |
| Insertion Loss (dB) | 6.5 max |
| I/O Configuration | Single Input, Single Output |
| Package Type | SMT |
| Package (mm) | 6.00 x 6.00 x 0.78 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | EAR99 |
