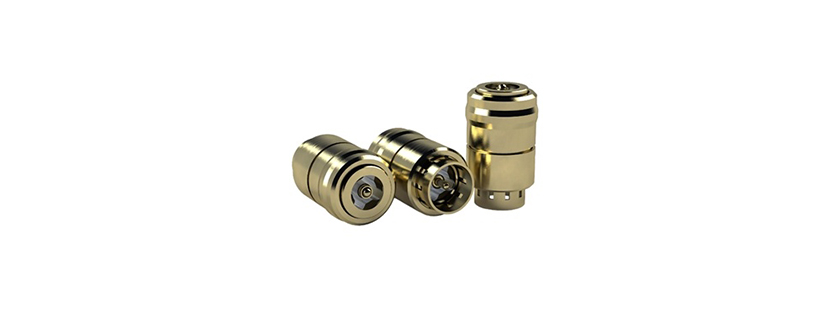

EZiCoax RF Connector by Smiths Interconnect
The EZiCoax from Smiths Interconnect are single-piece, spring-loaded coaxial connectors that operate up to 40 GHz. They are designed for compression-mount PCB-to-PCB RF interconnect applications. These 50-Ohm connectors do not require soldering or traditional mating connectors, simplifying assembly and alignment. They have a dielectric withstand voltage of 500 VDC, a voltage rating of 60 V RMS, and a current rating of 1 A.
The EZiCoax connectors support up to 1000 mating cycles. They are available in compact compression-mount configurations measuring 0.125 × 0.089 inches and operate over a temperature range of -55 °C to +165 °C. They are qualified in accordance with ESCC 3402 Issue 5 and meet TML and CVCM outgassing requirements.
Product Details
- Part Number: EZiCoax
- Manufacturer: Smiths Interconnect
- Description: Spring-Loaded Compression-Mount PCB Coaxial Connectors up to 40 GHz
General Parameters
- Connector Type: Spring Contact Probe
- Polarity: Standard
- Gender: Sexless
- Geometry: Straight
- Termination Style: Captive Contact, PCB
- Mounting Style: Compression Mount
- Center Contact Material: Nickel
- Insulation Material: TPX RT-18
- Impedance: 50 Ohms
- Connection Type: Standard
- Grade: Space Qualified
- Frequency: 10 MHz to 40 GHz
- Insulation Resistance: 5000 MO
- Pitch: 3.0 mm
- Mating Cycles: 1000 Cycles
- Type: Standard
- Connector Inner Diameter: 2.25 mm
- Operating Temperature: -55 to 165 Degree C
- Return Loss: 15 dB
- Voltage Rating: 60 V (RMS)
- Note: Current:1 A ; Dielectric Withstanding Voltage?:500 V ; Insertion Loss:1 dB
