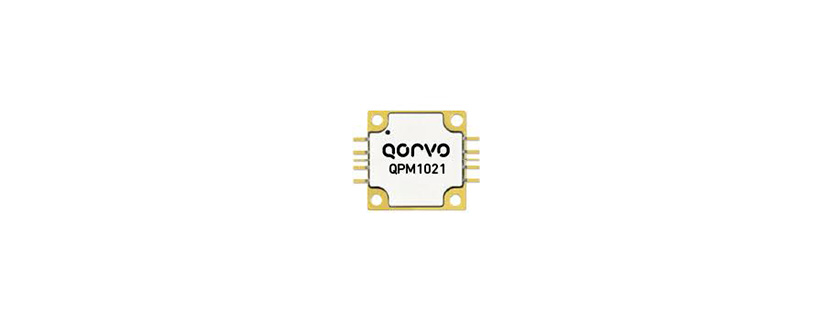

The QPM1021 from Qorvo is a High Power GaN Amplifier that operates from 10 to 12 GHz. It delivers 100 W of saturated output power with a gain of over 20 dB, and PAE of more than 32%. This amplifier is fabricated using Qorvo’s 0.15 um GaN on SiC process and is available in a 10-lead 19.05 x 19.05 x 4.52 mm bolt-down package, with a pure copper base for superior thermal management. It is an ideal solution for both commercial & military radar systems, satellite communication systems, and data links.

Product Details

    • Part Number : QPM1021
    • Manufacturer : Qorvo
    • Description : 100 W GaN Power Amplifier from 10 to 12 GHz

General Parameters

    • Type : Power Amplifier
    • Configuration : IC/MMIC/SMT
    • Industry Application : Commercial, Radar, Military
    • Frequency : 10 to 12 GHz
    • Power Gain : 20 dB
    • Small Signal Gain : 26 dB
    • Saturated Power : 50 dBm
    • Saturated Power : 100 W
    • Input Power : 28 dBm
    • Input Power : 0.63 W
    • PAE : 26.2 to 32.9%
    • Impedance : 50 Ohms
    • Pulsed/CW : Pulsed
    • Sub-Category : GaN Amplifier
    • Input Return Loss : 13 dB
    • Output Return Loss : 11 dB
    • Supply Voltage : 24 to 28 V
    • Transistor Technology : GaN on SiC
    • Package Type : Bolt Down
    • Package : 10-Lead Bolt-Down
    • Dimensions : 19.05 x 19.05 x 4.52 mm
    • Operating Temperature : -40 to 85 Degree C
    • Storage Temperature : -55 to 150 Degree C
    • RoHS : Yes
