Coilcraft High-Performance Power Inductors Reduce DCR by Up To 40%

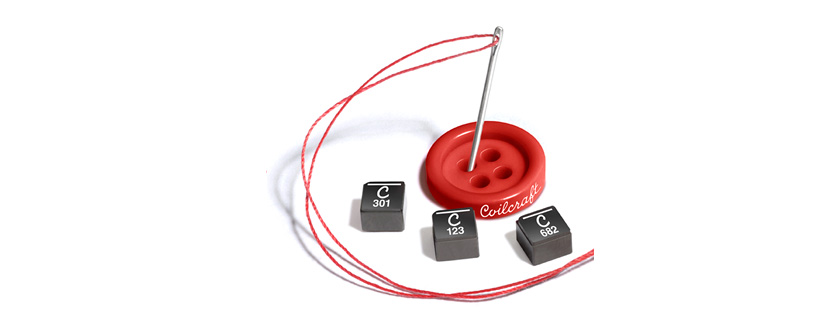

XGL4030 Series Ultra-Low Loss Shielded Power Inductors

Industry’s lowest DCR and ultra low AC losses over a wide frequency range
Superior current handling with soft saturation characteristics
AEC-Q200 Grade 1 (−40°C to +125°C)
Wide inductance range up to 12 µH
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
Samples of all XGL4030 values are available in Coilcraft Designer’s Kit C486
COTS Plus tin-silver-copper and tin-lead terminations available
Expanded inductance range, including 18 values from 0.13 to 12.0 µH
Current ratings up to 26.5 Amps with soft saturation characteristics to withstand high current spikes
The lowest DC resistance currently available in the market – up to 40% lower than Coilcraft’s next lowest soft-saturation products!
Lower DCR and higher Irms allow the XGL4030 to operate much cooler than other components
Ideal for DC-DC converters with switching frequencies ranging from hundreds of kHz to 5 MHz and above
