Menlo Micro is pleased to introduce the Switched on Circuits newsletter, where you can find our latest product developments, solutions and concept designs using our industry-leading Ideal Switch™ technology.

Whether you are looking to build DC, AC, or RF-based circuits, Menlo Micro’s Ideal Switch technology offers ultra-high levels of reliability, with over 3 billion On/Off switching cycles, and superior levels of electrical and thermal performance.

See our latest solutions designed by our expert engineers that address multiple RF and power systems applications



Applying a new concept in frequency selectivity for mission-critical aerospace and defense applications…

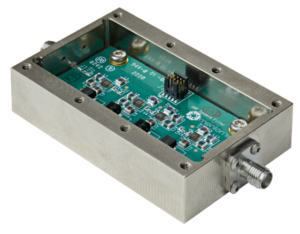

MM6000 Series Reconfigurable HF to UHF Band RF Filters

  • Low insertion loss and high peak power handling capability
  • Designs result in enhanced performance over temperature and improved thermal management compared with traditional solid-state switches
  • Considerable 90% size reduction compared with existing switched filter bank designs

> Learn more about the MM6000 filters, here.

> Microwave Journal profiles the MM6000 filter in the September edition of their Aerospace & Defense Brief, here.

> Watch the session on high power filters from the Menlo Micro Switch Summit: https://bit.ly/2YwcAiH.



See how complex signal routing requirements can be streamlined for test and measurement systems…

MM4000 Series DC and RF Coax Switches and Multiplexers

  • Designs achieve low channel losses and high levels of signal linearity
  • Capability from 26 GHz down to DC operation
  • Small switch form factors of 2.5mm x 2.5mm allow for much higher density switching matrices and systems over traditional EM relay designs

> Learn more about the MM4000 switch solutions, here.

> Read Evaluation Engineering’s article on how Menlo Micro’s Ideal Switches are used in high-density switch matrices, here.

> Watch the sessions on the RF switch multiplexer design: https://bit.ly/3DtwA4H and RF Coax SPDT switch: https://bit.ly/3laGu4M from the Menlo Micro Switch Summit.



Learn about how an ultra-high linearity differential delay shifter is utilized in a 3.5 GHz beam-steering array for 5G infrastructure antennas…

MM6105 3.5 GHz Delay Shifter

  • Low insertion loss true differential delay shifter for 5G Analog and hybrid beam-forming antenna systems
  • Ultra high IP3 performance of >95 dBm
  • Scalable delay lines for additional state and frequency coverage

> Learn more about the MM6105 differential delay shifter, here.

> Read Microwave Journal’s article on our MEMS Switch-Based Differential Delay Shifter for a 3.5 GHz Beam Steering Antenna, here.

> Watch the sessions on the MM6105 designed into a 3.5 GHz CBRS beam steering antenna: https://bit.ly/3Deq8yf .



A new and disruptive concept in smart power relays that promises to transform the electrical grid and industrial IoT…

MM9105 SPST Power Relay Prototype

  • Versions supporting 277 VAC/10 Amps and 60 VDC/10 Amps
  • Firmware adjustable Over Current Protection (OCP) circuitry
  • Typical 50 milliOhms on resistance

> Learn more about the MM9105 SPST Power Relay Prototype, here.

> Watch the Smart Power Product session from the Menlo Switch Summit: https://bit.ly/3oDFy
