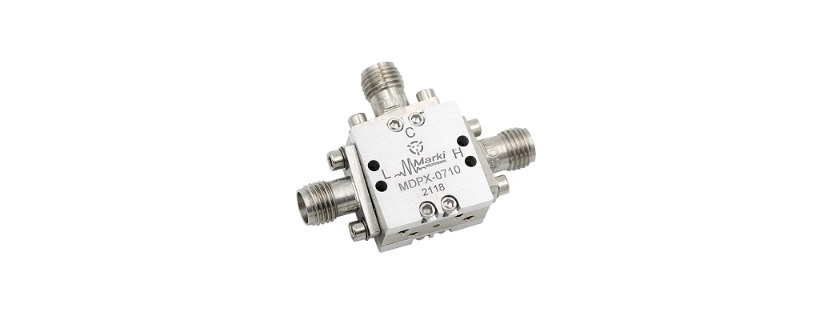

MDPX-0710 Diplexer by Marki Microwave

MDPX-0710 Diplexer by Marki Microwave

MDPX-0710 Diplexer by Marki Microwave

The MDPX-0710 from Marki Microwave is a Passive MMIC Diplexer with passbands from DC to 7 GHz (Low Band) and 10 to 26.5 GHz (High Band). It has an insertion loss of less than 0.9 dB in the passbands, a rejection of over 25 dB outside the passbands. The Passive GaAs MMIC technology allows the production of smaller filter constructions that replace larger form factor circuit board constructions. It has tight fabrication tolerances which minimize unit-to-unit variations that traditional filter technologies often face. The MDPX-0710 is available as a wire bondable chip or connectorized module.

Product Details

  • Part Number: MDPX-0710
  • Manufacturer: Marki Microwave
  • Description: Passive MMIC Diplexer with Passbands from DC to 7/10 to 26.5 GHz

General Parameters

  • Frequency: DC to 26.5 GHz
  • Frequency f1: DC to 7 GHz
  • Frequency f2: 10 to 26.5 GHz
  • Power: 30 dBm
  • Attenuation: 25 to 51 dB
  • Attenuation f1: 30 to 45 dB
  • Attenuation f2: 25 to 51 dB
  • Insertion loss: 0.85 to 0.9 dB
  • Insertion loss f1: 0.85 dB
  • Insertion loss f2: 0.9 dB
  • Isolation f1: 20 to 38 dB
  • Isolation f2: 28 to 45 dB
  • Return loss f1: 10 to 22 dB
  • Return loss f2: 10 to 21 dB
  • Grade: Commercial
  • Impedance: 50 Ohms
  • Package Type: Module with Connectors
  • Connectors: SMA, SMA – Female
  • Operating Temperature: -65 to 125 Degree C
  • Storage Temperature: -65 to 125 Degree C
  • RoHS: Yes
