Coilcraft 1512SP / 2712SP Series

Mini Air Core Inductors

• Inductance values from 2.5 nH to 150 nH (tolerances as low as 2%)
• Tight tolerance can eliminate circuit tuning
• Acrylic jacket provides a flat top for pick and place
• Exceptionally high Q over a wide frequency range
• Solder coated leads ensure reliable soldering
• Wide range of standard EIA inductance values

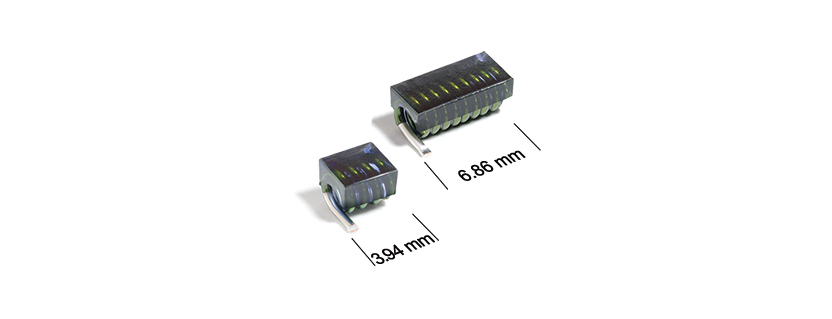

• Available in two sizes: 4.45 × 3.94 × 3.15 mm and 6.86 × 4.45 × 3.15 mm
• RoHS-compliant  260°C compatible. Terminations: tin-silver over copper
• COTS Plus tin-silver-copper and tin-lead terminations available



Terminations RoHS compliant tin-silver over copper. Other terminations available at additional cost.

Ambient temperature –40°C to +125°C with Irms current, +125°C to +140°C with derated current

Storage temperature Component: –40°C to +140°C.  Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL) +5 to +70 ppm/°C

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
