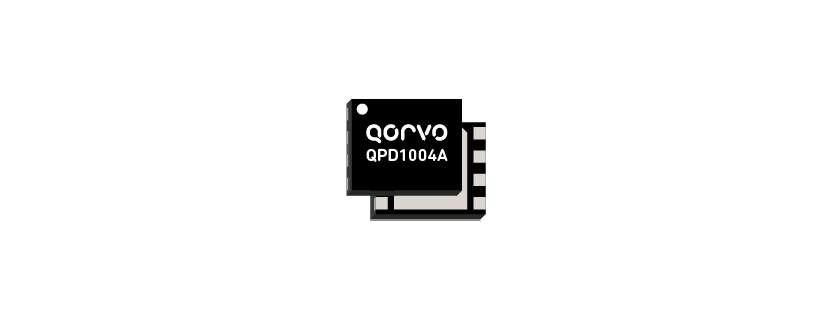

Qorvo QPD1004A
25W, 30-1200 MHz, GaN RF Input-Matched Transistor
Key Features
-
Frequency range: 30 – 1200 MHz
-
Drain Voltage: 50 V
-
Output Power (P3dB): 40W at 1 GHz, load pull data
-
PAE (P3dB): 73% at 1 GHz, load pull data
-
Input matched to 50 Ohms
-
Low thermal resistance package
QPD1004A is a 25W (P3dB), 50-Ohm input-matched discrete GaN on SiC HEMT which operates from 30 MHz to 1200 MHz. The integrated input matching network enables wideband gain and power performance, while the output can be matched on board to optimize power and efficiency for any region within the band. The device is housed in a 6 x 5mm leadless SMT package that saves real estate of already space-constrained handheld radios.
| Frequency Min(MHz) | 30 |
| Frequency Max(MHz) | 1,000 |
| Type | Input-Matched |
| Gain(dB) | 17 |
| Psat(dBm) | 43.4 |
| PAE(%) | 58 |
| Vd(V) | 50 |
| Package Type | QFN |
| Package(mm) | 6.0 x 5.0 x 0.85 |
Data Sheets: Product Data Sheet, Rev A – 10/24/2025
CAD Layout Files: PCB Symbol, Footprint & 3D Model (provided by SamacSys)
