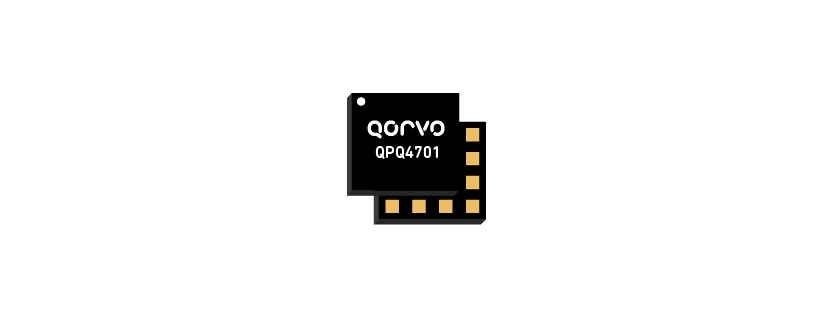

QPQ4701 Diplexer by Qorvo
The QPQ4701 from Qorvo is a BAW Diplexer with passbands from 2412 to 2484 MHz and 5170 to 5835 MHz. It enables single-antenna operation for 2.4 GHz and 5 GHz Wi-Fi bands in compact wireless systems. This BAW diplexer leverages Qorvo’s coexBoost and bandBoost technologies to provide steep skirts, low insertion loss, and high near-in rejection for LTE coexistence. It has an insertion loss of less than 2.5 dB and can handle an input power of up to 28 dBm. The diplexer provides high near-in rejection to mitigate interference from LTE bands such as B7, B38, B40, and B41.
The 2.4 GHz path integrates a BAW filter, while the 5 GHz path supports a low-loss bandpass that covers the Wi-Fi UNII 5-8 bands. It is available in a laminate surface-mount package measuring 2.2 × 2.0 mm. This diplexer is suitable for access points, wireless routers, residential gateways, customer premises equipment (CPE), and IoT applications.
Product Details
- Part Number: QPQ4701
- Manufacturer: Qorvo
- Description: BAW Diplexer for 2.4 GHz and 5 GHz Wi-Fi Bands with LTE Coexistence Filtering
General Parameters
- Frequency f1: 2402 to 2482 MHz
- Frequency f2: 5150 to 5735 MHz
- Power: 28 dBm
- Insertion loss: 1.5 to 2.5 dB
- Frequency: 2402 to 5735 MHz
- Type: BAW
- Grade: Commercial
- Application Type: WiFi, 4G, 5G, LTE
- Application: Access Points, Wireless Routers, Residential Gateways, Customer Premise Equipment, Internet of Things
- Package Type: Surface Mount
- Package: Laminate
- Dimension: 2.2 x 2.0 mm
- Operating Temperature: -20 to 95 Degree C
- RoHS: Yes
- Note: Bandwidth: 20/160 MHz
