Description
Cavli is proud to present the C20QM, a series of LTE Cat 4 modules, with emphasis on data speed/bandwidth, that support 3GPP release 10. Engineered in LGA form factor, it offers pin compatibility with the C10GS LTE Cat 1/Cat 4 and C10QM modules, allowing for flexible migration and interoperability. The module encompasses integrated GNSS, with Qualcomm® IZat™ location technology Gen8C Lite, providing precise and reliable positioning through GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS.
The C20QM supports VoLTE and SMS over IMS/SG/CS, along with a plethora of internet protocols and industry-standard interfaces. The module comes in two variants: C20QM-EA for the Europe and Asia markets, and C20QM-NA for the North America market. Additionally, with an optional integrated eSIM powered by the Cavli Hubble platform, it offers global connectivity, reducing time to market. The C20QM module is designed for IoT and M2M applications, such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.

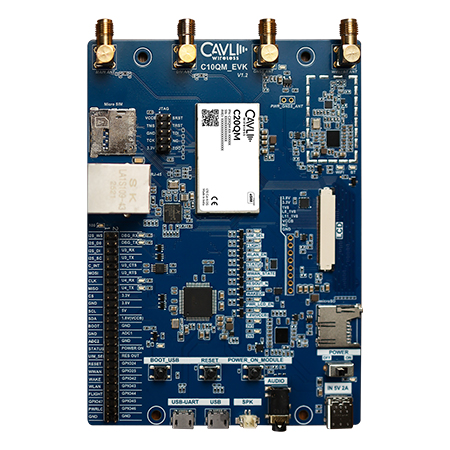

C20QM-DDK-02 – Evaluation Kit:
The C20QM-DDK-02 evaluation kits provide a simple, flexible and ready-to-use environment for evaluating Cavli’s C10QM / C20QM cellular modules, as well as for designing and testing of cellular and GNSS applications. The kit is very user friendly, and has both USB and RS232 interfaces for development, testing and tracing. The kit comes with a builtin LTE Module, giving designers the flexibility to test and analyse the Cellular and GNSS capabilities of the Cavli C10QM /20QM module. On the C20QM-DDK-02 , a 1 year IOT connectivity to Cavli’s Hubble Platform is included . The kits are to be used with a Windows PC via USB interface and can be used with an External activated SIM card as well if the Cavli Hubble Services are not required (not included).
Highlights:
- Cavli LTE Cat 1 / Cat 4 cellular technology
- Easy to use
- Simple access to all pins and features of the cellular module
- Extensive visualization and evaluation features
- Cavli 1 Year Subscription to Hubble Services with Embedded SIM Card
- USB Port, UART, Ethernet, SD Card, SIM Socket, LCD Interface
- Yocto Linux SDK
