Description

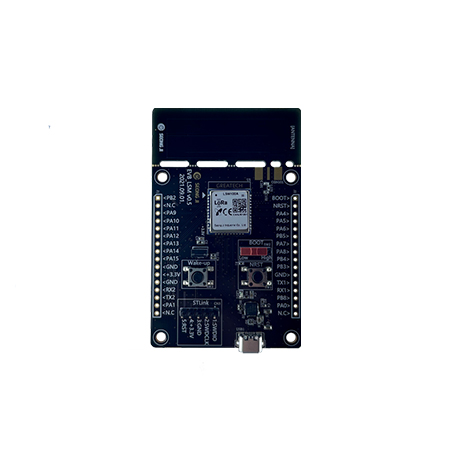

Evaluation board for the LSM100A , a compact, low-power, bidirectional radio module for the 863MHz – 928 MHz frequency band using Sigfox and LoRa modulation technology. The module provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
This LSM100A is a highly-integrated, low power, bi-directional radio transceiver module optimized for use in the sub-1GHz ISM bands.
Key Features
- Compact module 14 x 15 x 2.8mm. (Typ.)
- LoRaTM modulation technology.
- Sigfox modulation technology.
- Sensitivity down to -136dBm@LoRa(BW=125KHz, SF=12)
- 124dBm@Sigfox(0.6Kbps)
- UART interface.
- Low-Power Long Range Transceiver operating in the sub-1GHz ISM band
- Supply voltage range from 1.8 to 3.6V.
- RF interface optimized to 50 Ω.
- Output Power Level up to +15dBm
- STM32WLE5CC
