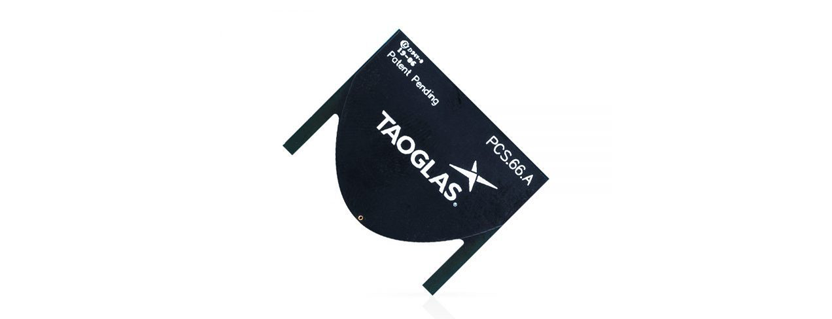

The Reach PCS.66.A from Taoglas is an LTE/Cellular/5G SMD antenna that operates from 600 to 6000 MHz covering all LTE cellular bands and all sub-6 GHz bands for 5G deployments. It also covers 3G and 2G bands to allow for fall-back when LTE is not available. This omnidirectional antenna delivers a gain of up to 5.7 dBi with an efficiency as high as 80% and can handle an input power of up to 5 watts.
Measuring just 32 x 25 x 1.6 mm, the PCS.66.A is available as tape and reel and can be mounted on the short edge of the PCB via ‘pick & place’. It is suitable for lower cost LTE applications, especially IoT projects and can be tuned for the device environment using a matching circuit, or other techniques on the main PCB itself.
Product Details
-
-
- Part Number : PCS.66.A
- Manufacturer : Taoglas
- Description : Wideband LTE/Cellular/5G SMD Antenna
-
General Parameters
-
-
- Type : Low Profile, PCB
- Directionality : Omni-Directional
- Polarization : Linear
- Standards : LTE, GSM, CDMA, 5G, HSPA, UMTS, WiFi
- Frequency : LTE : 617 to 960 MHz/1427 to 1518 MHz/1710 to 1990 MHz/1920 to 2170 MHz/2500 to 2700 MHz/3300 to 5000 MHz, WiFi : 2400 to 2500 MHz/5150 to 5850 MHz
- Gain : Peak Gain : 1.3 to 5.7 dBi, Average Gain : -3.4 to -1 dBi
- Power : 5 W
- Efficiency : 45 to 80 %
- Industry : Cellular / Wireless Infrastructure, WiFi / Bluetooth / ZigBee
- VSWR : 3.00:1
- Mounting : Surface Mount, PCB Mount
- Impedance : 50 Ohms
- Connectors : SMA, SMA – Female
- Multi Band : Yes
- Multi Port : No
- Dimension : 32 x 25 x 1.6 mm
- Operating Temperature : -40 to 85 Degree C
- Storage Temperature : -40 to 105 Degree C
- RoHS : Yes
-
Courtesy of everything RF : PCS.66.A Antenna by Taoglas
