Nordic nRF9160 SiP enters final volume production phase having passed all major certifications required for end-product deployment

Nordic nRF9160 SiP enters final volume production phase having passed all major certifications required for end-product deployment

The nRF9160 System-in-Package (SiP) is ready for mass deployment in both LTE-M and NB-IoT cellular networks and cellular IoT product applications around the globe

Nordic Semiconductor today announces that its nRF9160 System-in-Package (SiP) LTE-M/NB-IoT and GPS cellular IoT module has entered final volume silicon production phase having successfully passed a series of major qualifications and certifications.

These include: GCF, PTCRB, FCC (U.S. & LAT AM), CE (E.U.), ISED (Canada), ACMA (Australia & New Zealand), TELEC/RA (Japan), NCC (Taiwan), and IMDA (Singapore).

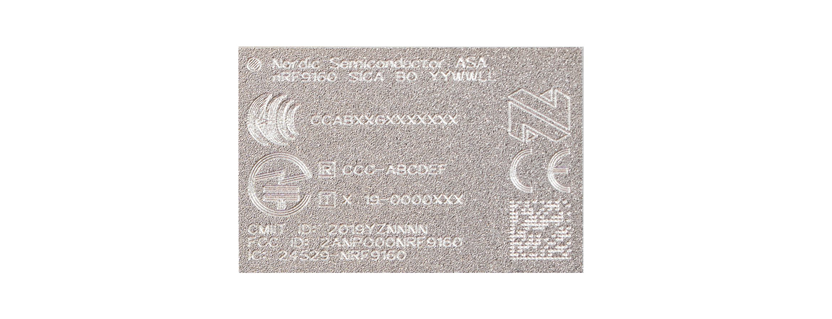

At just 10 x 16 x 1mm in size, the nRF9160 SiP is suitable for even compact consumer and medical wearables, and asset-tracking devices. Yet it is a complete solution that integrates everything a cellular connection and IoT application may need beyond requiring just an external battery, SIM, and antenna.

The nRF9160 SiP’s modem and MCU were designed from the ground-up for optimized power performance in IoT systems. This enables nRF9160 SiP-based devices to stay connected to a cellular network with unparalleled low power consumption.

The nRF9160 SiP’s modem and MCU were designed from the ground-up for optimized power performance in IoT systems

The nRF9160 SiP is also available on a powerful single-board Development Kit (DK) made for the IoT application developer. This DK comes with free development tool support, a Cloud demonstration platform, and a Software Development Kit (SDK) in GitHub with sample applications to provide a great starting point for product development.

To achieve the nRF9160 SiP’s ultra-high integration Nordic partnered with Qorvo to make a SiP that integrates application processor, power management, modem, RF front-end, crystals, and passives. The nRF9160 SiP also supports global operation with a single SiP variant thanks to the combination of Nordic’s multimode LTE-M/NB-IoT modem, SAW-less transceiver, and a custom RF front-end solution from Qorvo.

In parallel, the nRF9160 SiP is the first cellular IoT module to incorporate Arm’s latest Arm® Cortex™ M33 CPU core, which is further supported by 1MB of Flash and 256kB of RAM on-board memory. The nRF9160 SiP is also the first cellular IoT module to incorporate Arm TrustZone and Arm CryptoCell security for Internet-level encryption and application protection with Arm Cortex M-based devices.

The nRF9160 SiP is also the only cellular IoT module on the market with integrated GPS support to allow a combination of GPS and cellular data to be used for more accurate positioning than either technology is capable of when used in isolation.
