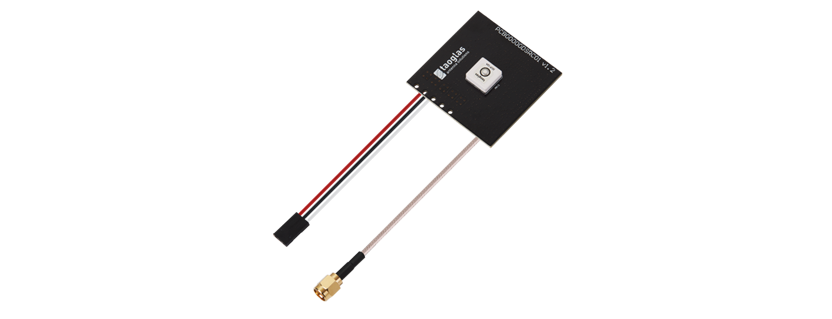

Taoglas ADCP.12A Active 5.9GHz DSRC Patch Antenna 12*12*4mm on PCB 50*50mm 150mm RG-316 SMA(M)

Taoglas ADCP.12A Active 5.9GHz DSRC Patch Antenna 12*12*4mm on PCB 50*50mm 150mm RG-316 SMA(M)

  • 5850MHz to 5925MHz band
  • For DSRC and CB2X Applications
  • Transmit and Receive Amplifiers
  • Low-EVM Power Amplifier
  • High-performance Patch Antenna
  • Robust ISO 16750 Compliant Power Input
  • AEC-Q Compliant
  • Manufactured in a IATF16949 approved facility
  • Cable : 150mm RG-316
  • Connector : SMA(M)
  • Cable & Connector Customizable
  • Dims: 50*50*5 mm

C-V2X Antenna

The Taoglas ADCP.12A is an embedded ceramic C-V2X Antenna in the form of a DSRC patch active antenna module. At 50*50*5 mm, it is a high performance, yet compact, 5.5dBi directional antenna designed to operate at 5850 MHz to 5925 MHz for DSRC (Dedicated Short Range Communications) and C-V2X (Cellular Vehicle to Everything) systems.

DSRC is the communications media of choice for active safety V2V/V2X (Vehicle to Vehicle and Vehicle to Other) systems, primarily allocated for vehicle safety applications. DSRC supports high speed, low latency, short-range V2V/V2X wireless communications. The ADCP.12 active antenna features a circularly polarized ceramic patch with high efficiency of 65% and peak gain of 5.5 dBi. The circular polarization enables a more stable system signal strength on moving vehicles. The ADCP.12 enables new, remote placement options for the secondary DSRC antenna. This revolutionary device packages a high-performance 5.9GHz ceramic patch antenna with a high-linearity power amplifier, a robust low-noise amplifier, and transmit/receive switches to provide a fully remote front-end.

By including the front-end with the remote antenna, two benefits are found:

Higher transmit and receive performance is available by counteracting the coaxial cable losses, and

Smaller-diameter coaxial cable can be utilized, reducing total vehicle weight and cost.

The Rx/Tx path control comes from the module along with DC supply designed to cover the automotive 9-26 V range. DC and overvoltage protection has also been implemented. This antenna is uniquely suited as the antenna of choice when it comes to V2X automotive applications due to this.

The ADCP.12 is produced in an IATF16949-compliant facility and is fully automotive qualified. For further optimization to customer-specific device environments where positioning is off-center or a different ground-plane size, a custom-tuned patch antenna can be supplied, subject to NRE and MOQ. The ADCP.12A is supplied with 150mm of RG-316 with an SMA(M) connector, both of which can be customized.

Available Downloads & Links:
Datasheet
