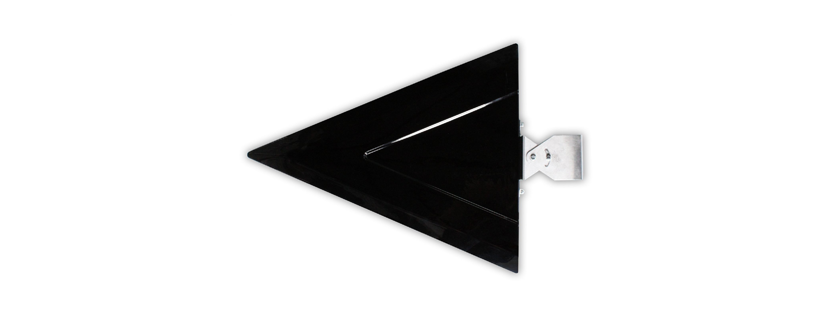

Taoglas Engager LPDA.03 External Wide Band Directional LPDA Antenna
- Frequency: 450-6000MHz
- Peak Gain: 7dBi
- Dims: 520*630*42mm
- Dims with Bracket: 520*770*95mm
- Cable Length: 300mm
- Connector: SMA(M)
The LPDA.03.032111 Engager is a wideband directional LPDA exterior antenna that operates within the 450-6000MHz frequency bands. It is an innovative and future proof solution ideal for LTE 4G and 2G/3G networks as well as 2.4GHz and 5.8GHz Wi-Fi. This wideband design eliminates the need to purchase different antennas for each frequency which simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The LPDA.03 has a 70° beam width in both orthogonal planes. The ABS external housing is robust, UV resistant and waterproof ensuring it is completely weatherproof and sealed, making it fully IP67 rated. For various mounting options, it is supplied with tilt and swivel wall and pole brackets. The LPDA.03 has been tested for wind resistance up 200 km/h. LTE 4G and 2.4GHz and 5.8GHz Wi-Fi applications demand high speed data uplink and downlink and where required, two LPDA.03 antennas can be mounted in space at 90° to create a MIMO arrangement. Cable type, length and connectors are customizable for large order volumes.
