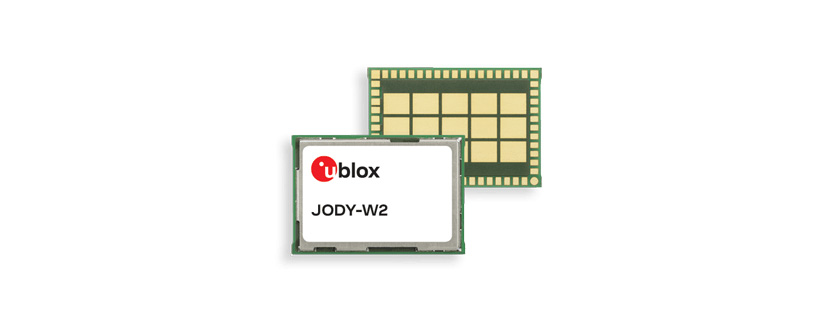

JODY-W2 series RF Module by u-blox AG

JODY-W2 series RF Module by u-blox AG

The JODY-W2 series from u-blox are automotive-grade RF modules supporting dual-band Wi-Fi 802.11a/b/g/n/ac and dual-mode Bluetooth 5 (Bluetooth BR/EDR and Low Energy). These compact modules are based on Marvell 88W8987 AEC-Q100 compliant chipsets and are optimized for the simultaneous operation of Wi-Fi and Bluetooth. The modules support 1×1 single-antenna 802.11ac Wi-Fi operation, with data rates up to 433 Mbit/s. And have a second antenna dedicated for Bluetooth operation. They are built to support operation at 105 ° C to meet the requirements for operation in very high temperatures, such as telematics systems in cars.

The JODY-W2 modules undergo extended automotive qualification according to ISO 16750-4 and are manufactured in line with ISO/TS 16949. They are available in 13.8 x 19.8 x 2.5 mm surface-mount packages and are ideal for in-vehicle infotainment, telematics, and industrial applications such as machine control. Radio type approvals are pending for the US, Europe, and Canada.

Product Details

    • Part Number : JODY-W2 series
    • Manufacturer : u-blox AG
    • Description : Automotive Grade Multi-radio Modules with Wi-Fi and Bluetooth

General Parameters

    • Technology : WiFi + Bluetooth
    • Frequency : 2.4 & 5 GHz
    • Bluetooth Standards : Bluetooth v5
    • WiFi Standards : 802.11 a/ac/b/g/n
    • Standard Supported : Bluetooth Low Energy
    • Mesh Networking : No
    • Supply Voltage : 2.8 to 5.5 V
    • Output Power : 18 dBm
    • Antenna : 2×2 MIMO
    • Interface Type : SDIO, UART, PCM
    • Package : 60-Pin LGA
    • Dimension : 13.8 × 19.8 × 2.5 mm
    • Operating Temperature : -40 to 105 Degrees C
